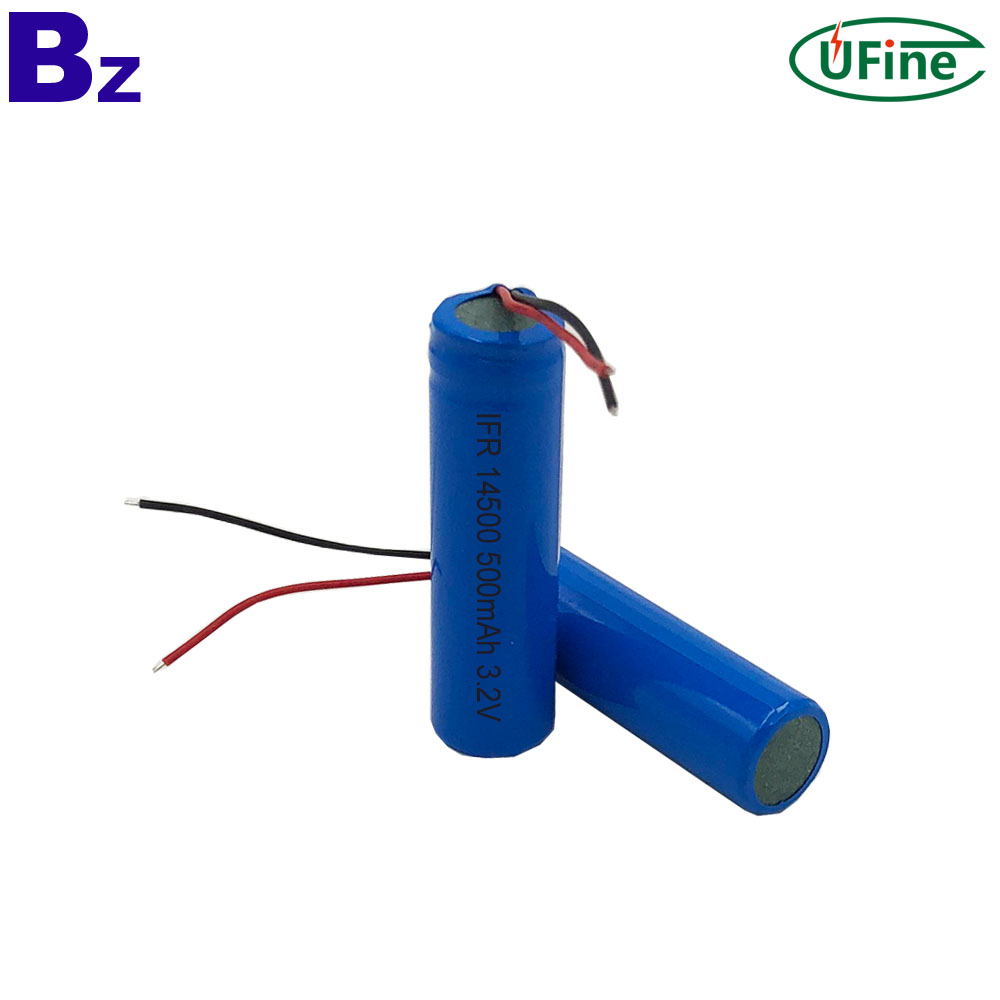

China Best Performance For Flashlight LiFePO4 Battery BZ 14500 500mAh 3.2V Lithium Iron Phosphate Cylindrical Battery

$0.70
In stock
SKU
BZ 14500 500mAh 3.2

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order of lipo battery !

  •     Place of Origin: Guangdong, China
        Brand Name: BZ
        Model Number: 14500
        Type: LiFePO4
        Nominal Voltage: 3.2V
        Size: 14.2*52mm
        Nominal Capacity: 500mAh
        Product name: BZ 14500 LiFePO4 Battery
        Warranty: 1 Year
        Weight: 10g
        Cycle life: 1000 Times
        Application: Flashlight LiFePO4 Cylindrical Battery
        Certificate: CE/RoHS/UN38.3/MSDS/KC
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

500mAh Flashlight LiFePO4 Cylindrical Battery

14500 500mAh 3.2V Lithium Iron Phosphate Battery

China Best Performance 500mAh LiFePO4 Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

510mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

500mAh

2

Nominal Voltage

3.2V

Mean Operation Voltage

3

Voltage at end of

2.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

3.6±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 3.6V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 2.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 3.6V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 2.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

Length: max52mm
Thickness: max14.2mm

Initial  Dimension
