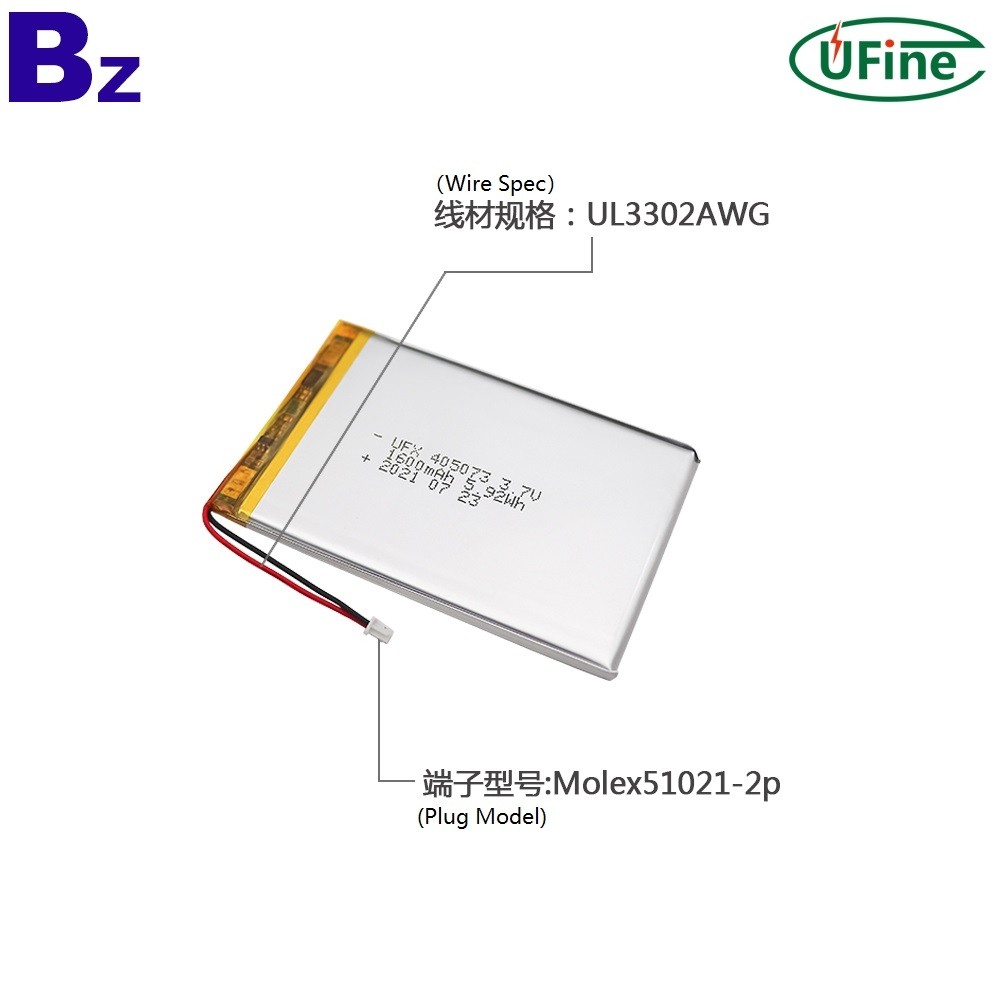

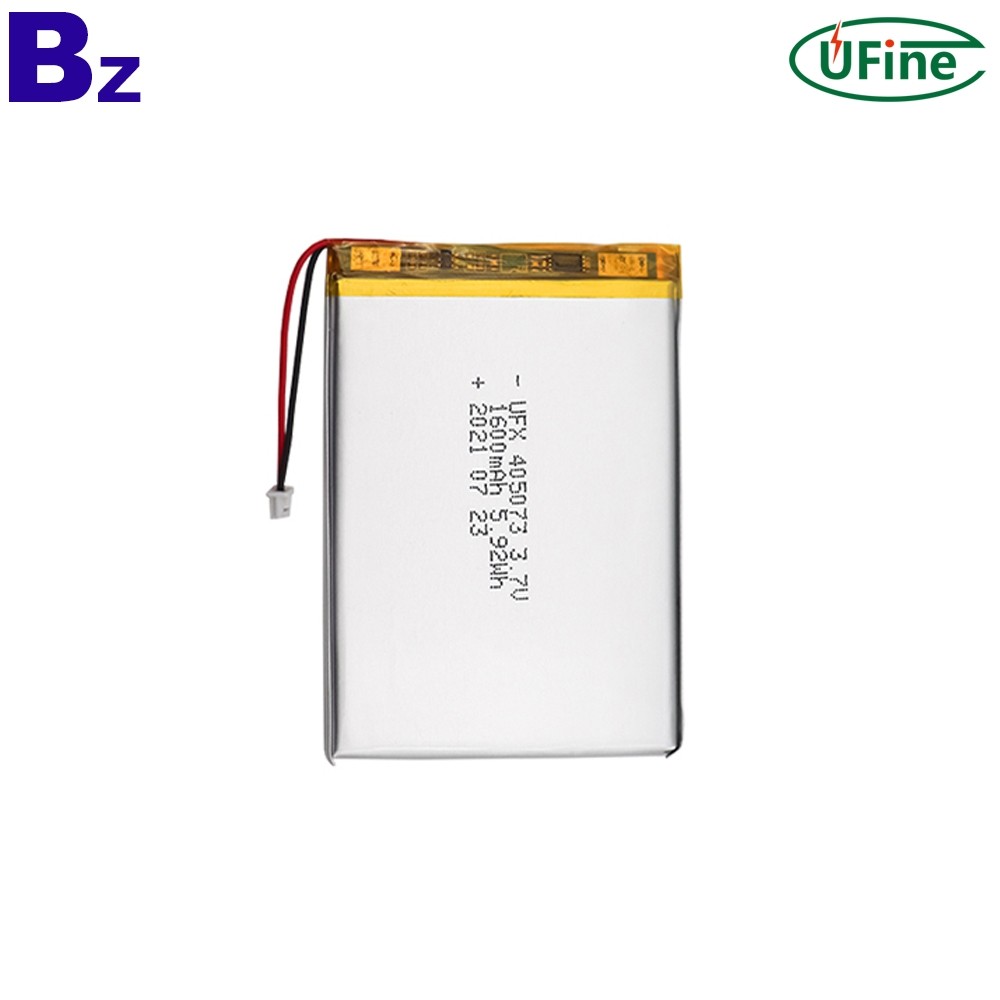

China High Quality for Power Bank Rechargeable Battery UFX 405073 1600mAh 3.7V Lithium Ion Polymer Batteries

$2.30
In stock
SKU
UFX 405073 1600mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 405073
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 4*50*75mm
        Nominal Capacity: 1600mAh
        Product name: UFX 405073 Li-polymer Battery
        Warranty: 1 Year
        Weight: 30g
        Cycle life: 500 Times
        Application: Power Bank Battery
        Certificate: CE/ROHS/MSDS/UN38.3
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

 China High Quality 405073 Battery

405073 1600mAh 3.7V Lithium Polymer Batteries

1600mAh Lithium Battery for Power Bank

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1620mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1600mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤135mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max75mm

Width: max50mm
Thickness: max4mm

Initial  Dimension
