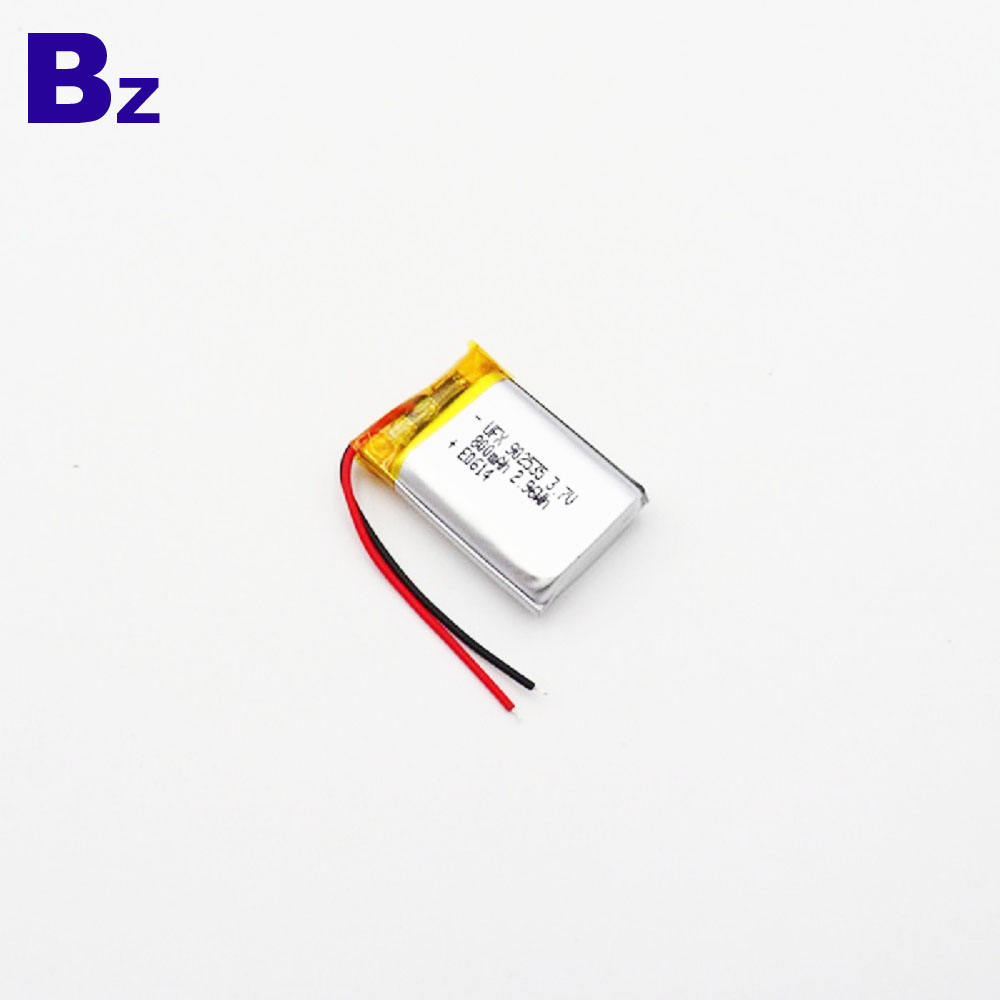

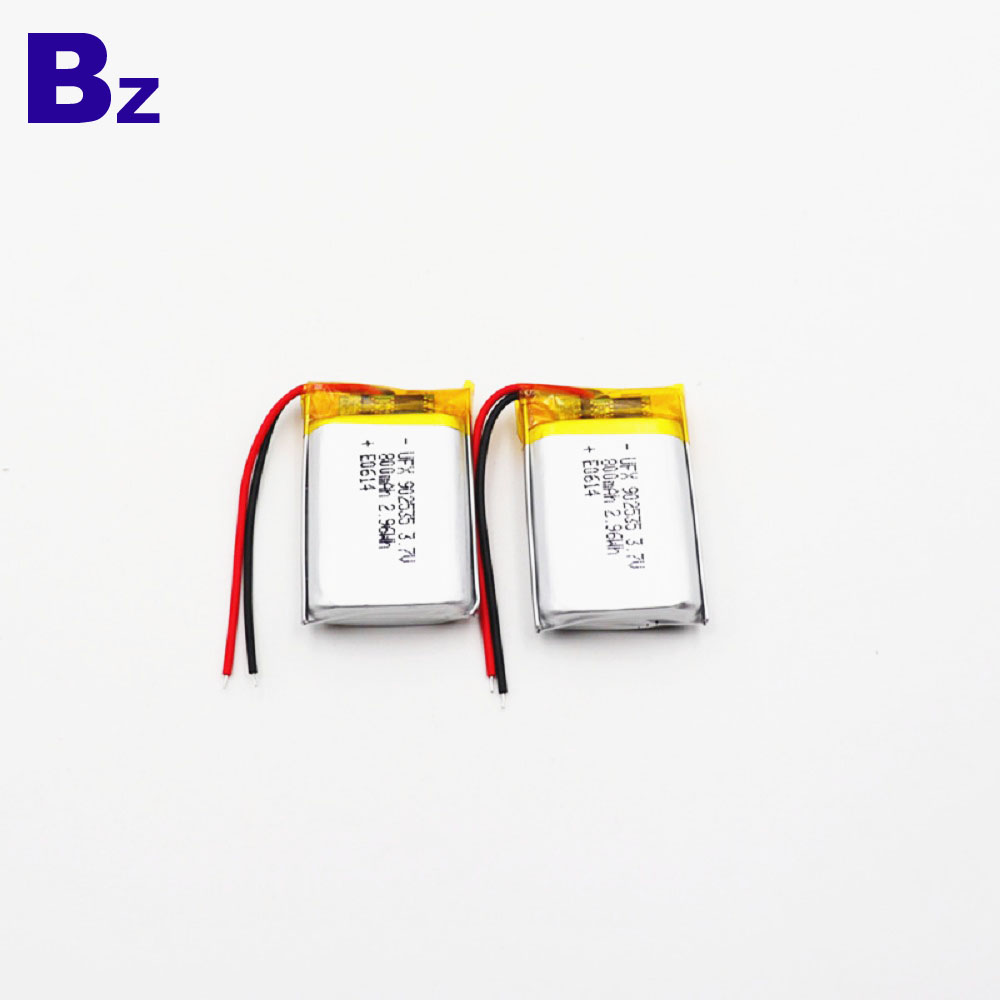

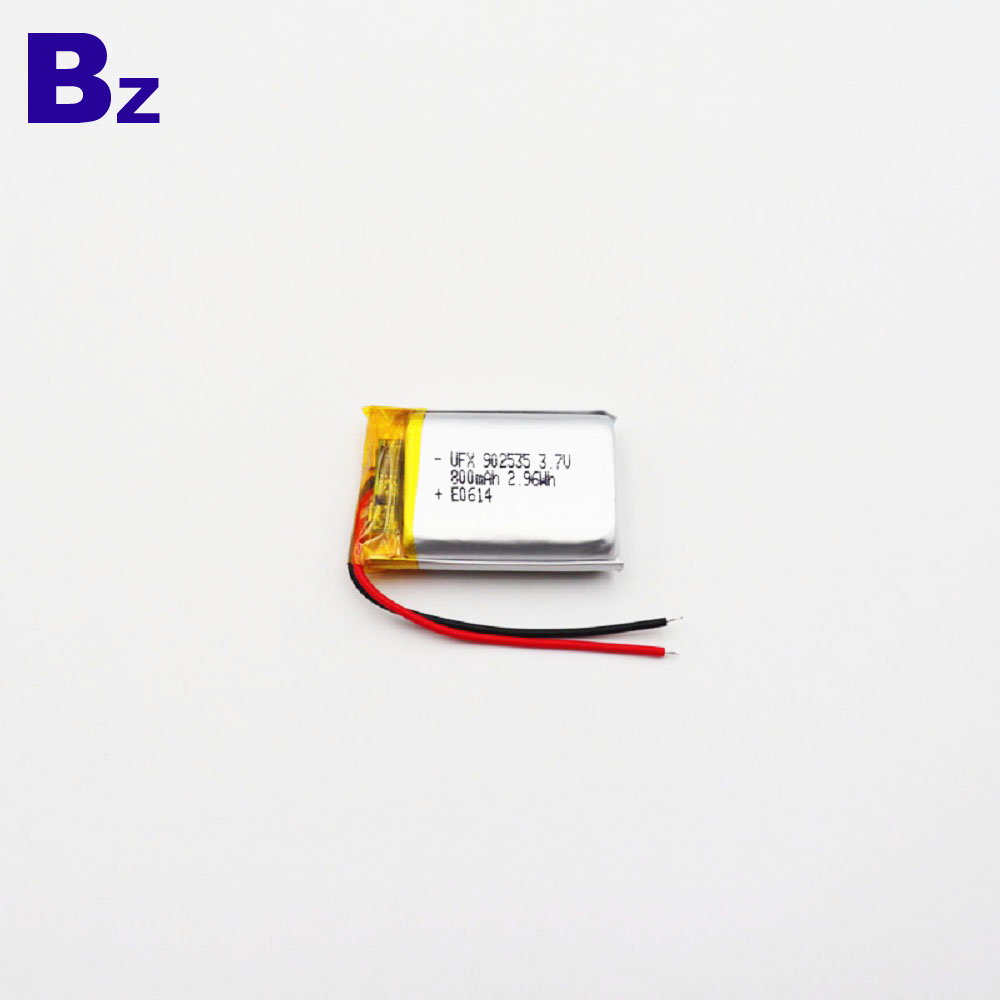

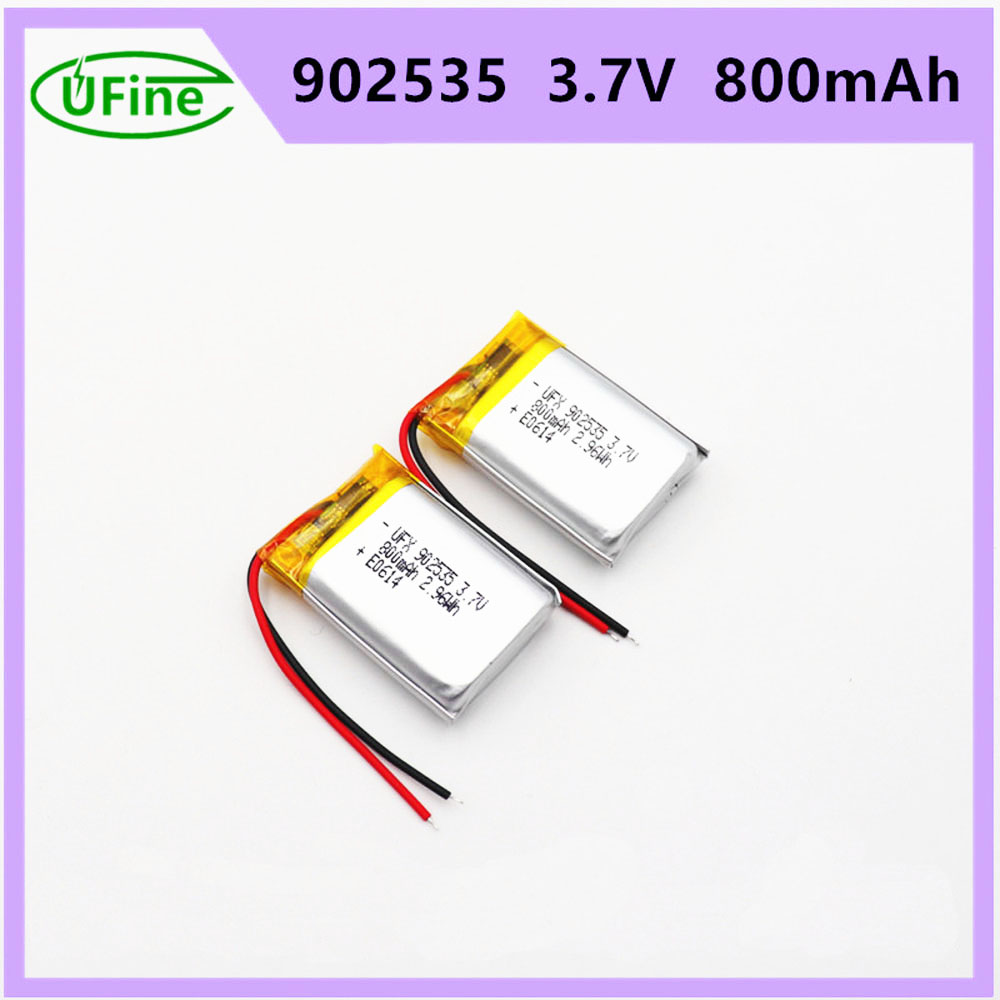

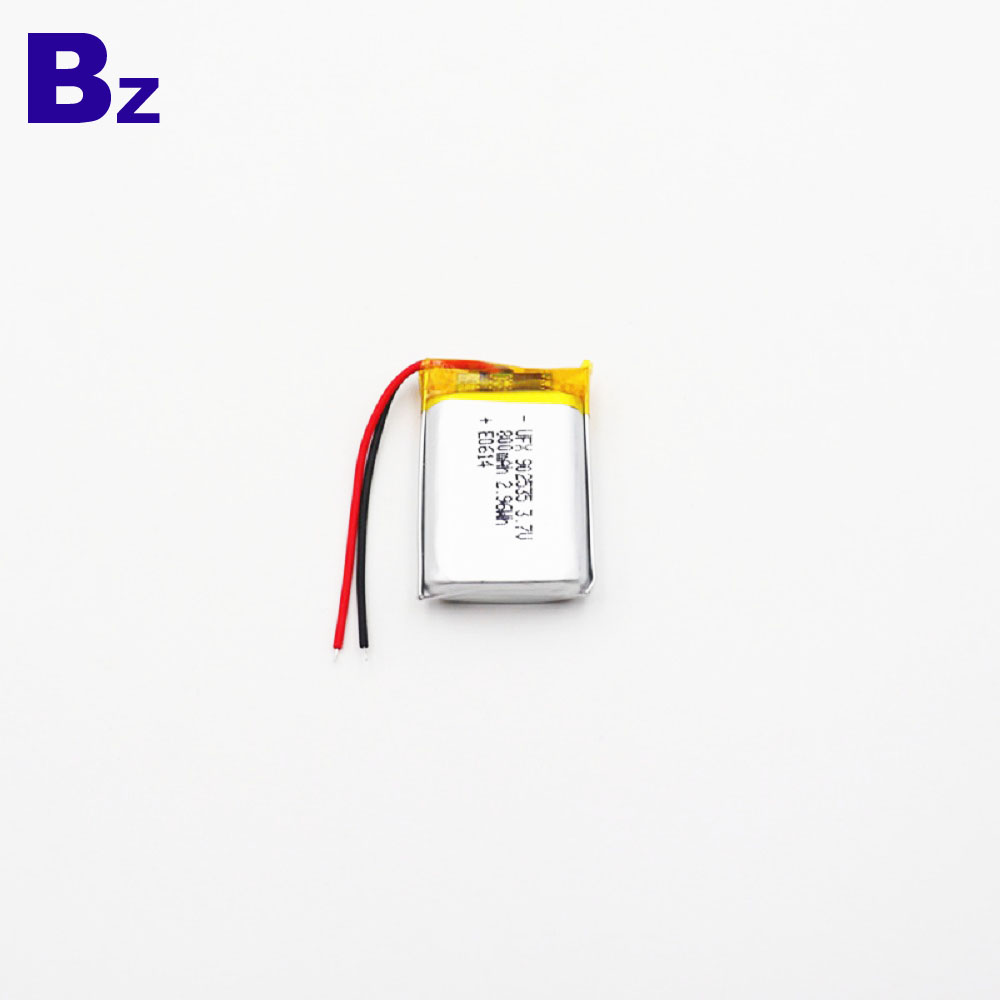

High Energy Lipo Battery For Electronic Blackhead Remover UFX 902535 800mAh 3.7V Li-Polymer Battery With KC Certification

$1.50
In stock
SKU
UFX 902535

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 902535
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 9*25*37mm
        Nominal Capacity: 800mAh
        Product name: UFX 902535 Li-ion Battery
        Warranty: 1 Year
        Weight: 17g
        Cycle life: 500 Times
        Application: Black Head Instrument
        Certificate: KC
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

li-ion battery

800mAh Battery For Black Head Instrument

902535 800mAh 3.7V Li Polymer Battery

800mAh With KC Certification

 Li Polymer Battery

 Battery For Black Head Instrument

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

830mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

800mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max37mm

Width: max25mm
Thickness: max9mm

Initial  Dimension
