Li-polymer Cell Factory Wholesale High Quality Massager Battery UFX 553562 3.7V 1100mAh Rechargeable Lithium-ion Battery

$1.60
In stock
SKU
UFX 553562 3.7V 1100mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 553562
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 5.5*35*64mm
        Nominal Capacity:1100mAh
        Product name: UFX 553562 Li-ion Battery
        Warranty: 1 Year
        Weight: 21g
        Cycle life: 500 Times
        Application:  MassagerBattery
        Certificate: CE/RoHS/UN38.3/MSDS/UL
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

 Li-polymer Cell Factory Wholesale 3.7V Battery

1100mAh High Quality Massager Battery

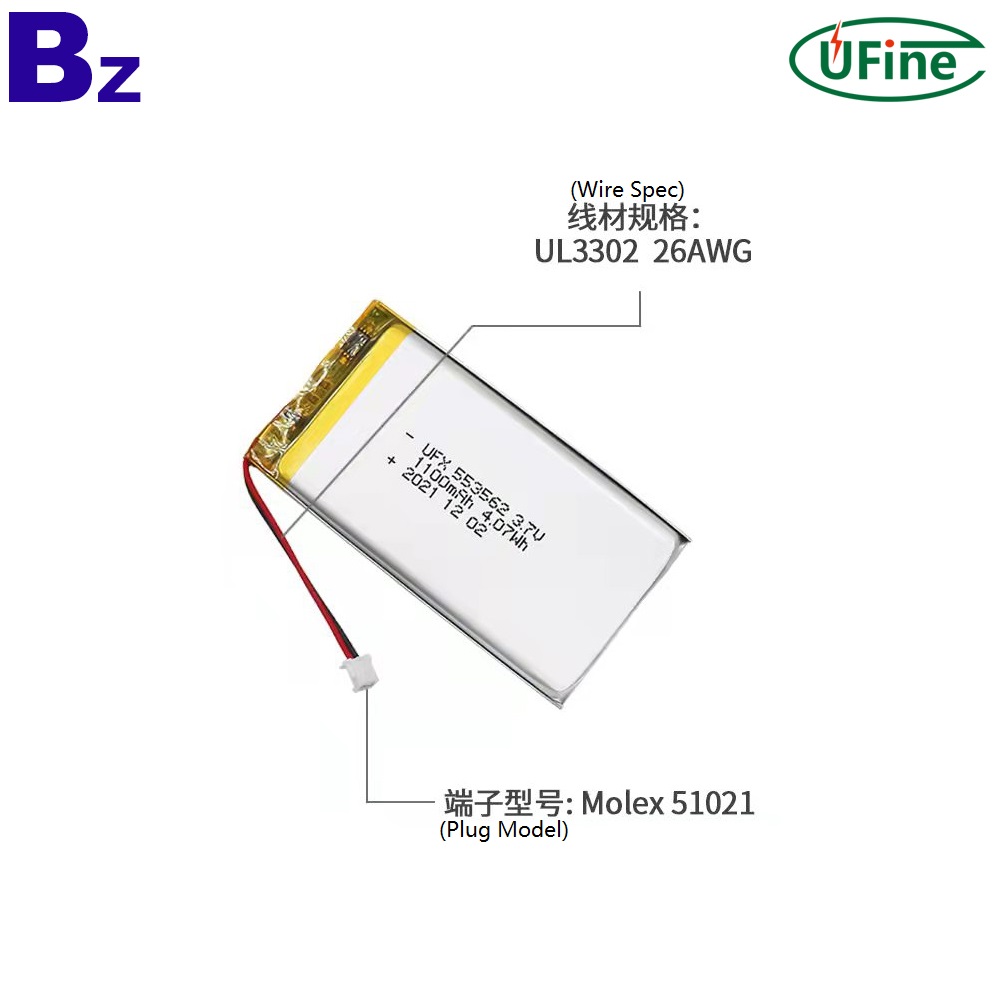

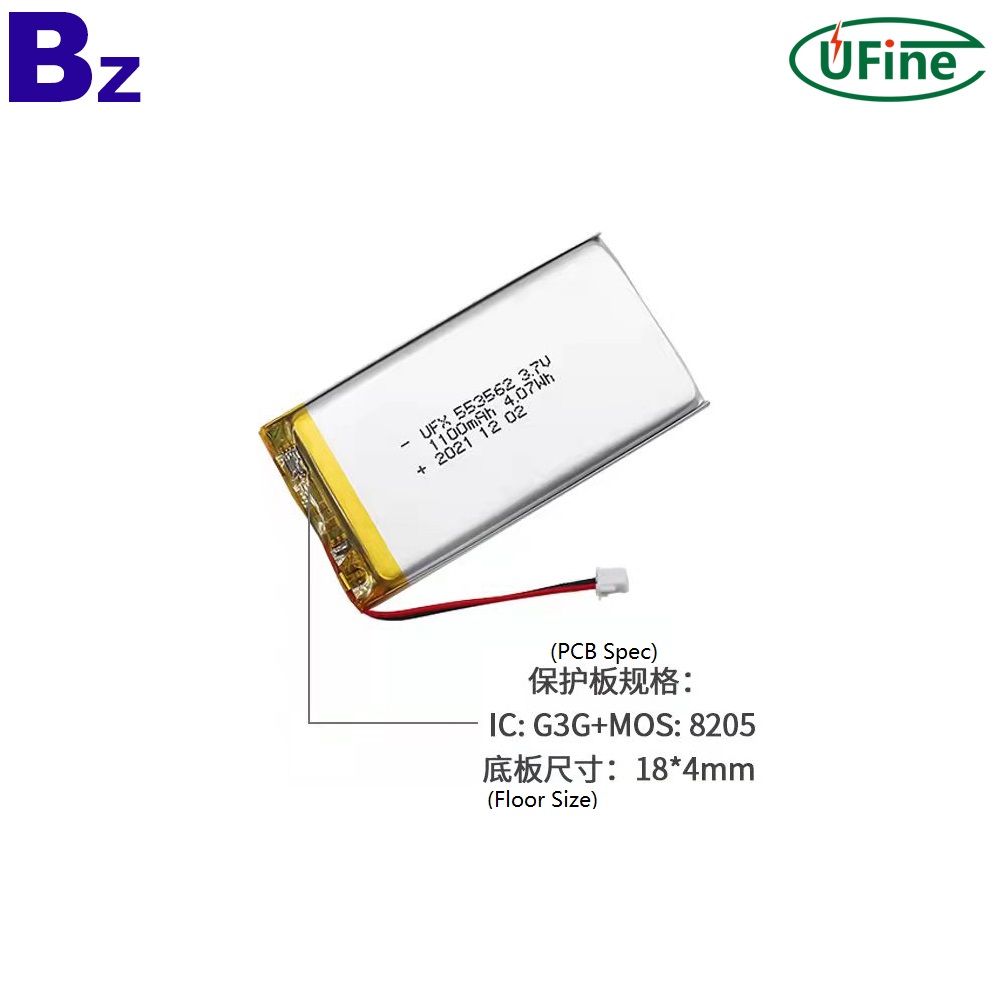

553562 3.7V 1100mAh Rechargeable Lithium-ion Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1120mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1100mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤155mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max64mm

Width: max35mm
Thickness: max5.5mm

Initial  Dimension
