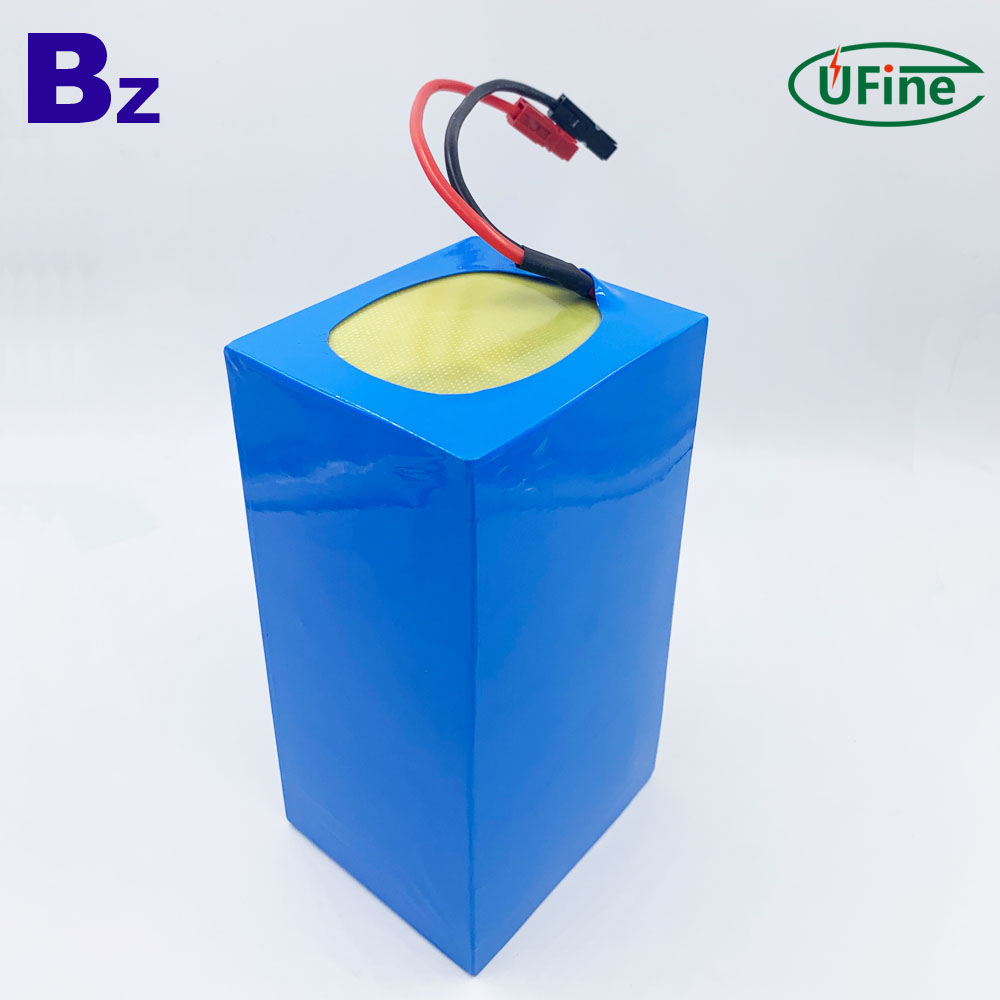

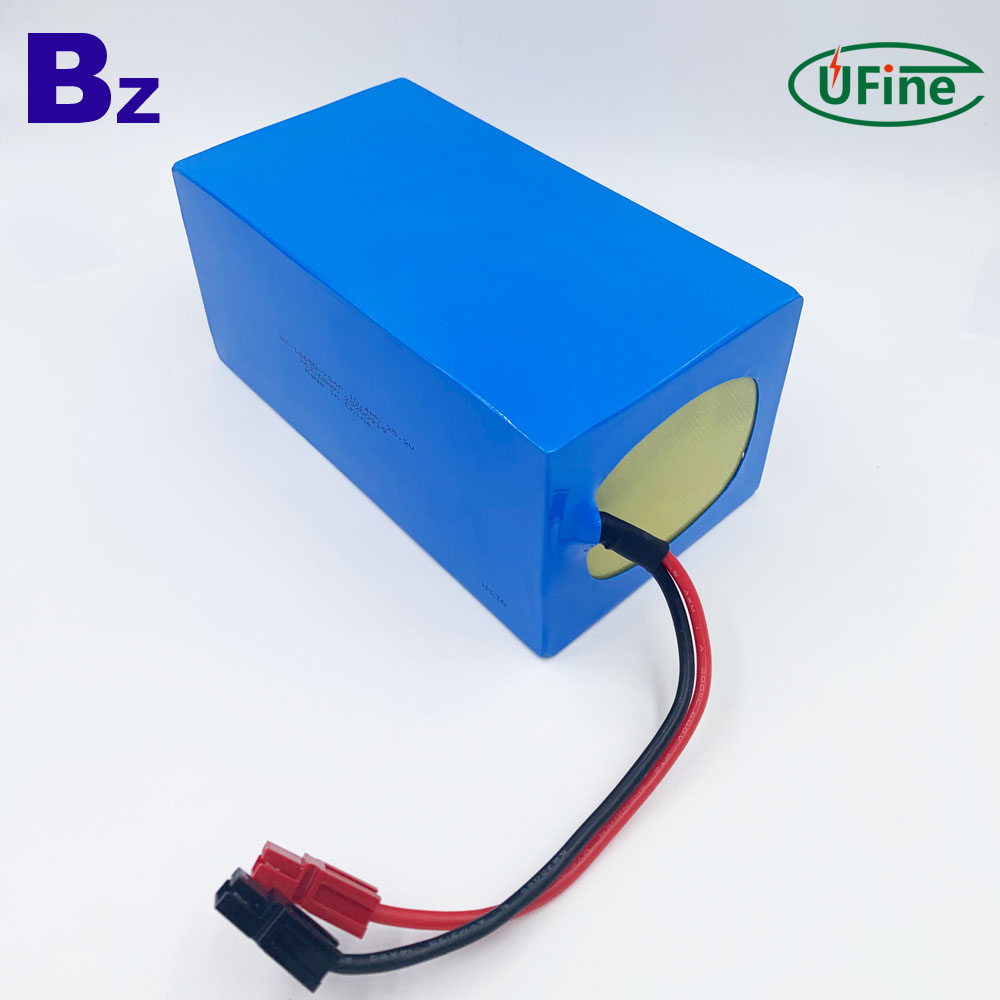

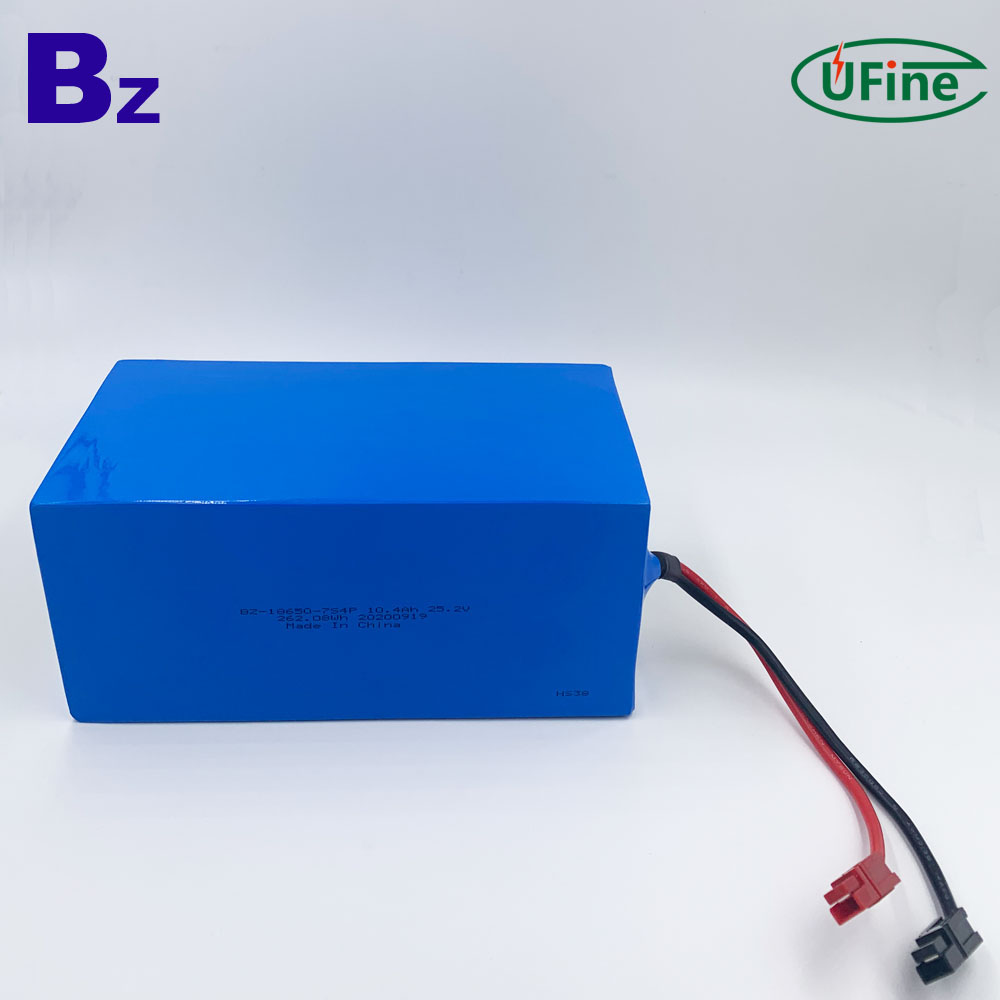

Shenzhen 18650 Battery Factory Supply Long Life Electric Forklift Rechargeable Battery BZ 18650-7S4P 25.2V 10.4Ah Li-ion Battery Pack

$56.00
In stock
SKU
BZ 18650-7S4P

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: BZ
        Model Number: 18650-7S4P
        Type: Li-ion
        Nominal Voltage: 25.2V
        Size: 76*88*165mm
        Nominal Capacity: 10.4Ah
        Product name: BZ 18650-7S4P Li-ion Battery
        Warranty: 1 Year
        Weight: 1.3Kg
        Cycle life: 2000 cycles
        Application: Electric Forklift Battery
        Certificate: UN38.3/CE/MSDS/ROHS/KC/FCC
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: ≤0.5C

Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

10.4Ah Long Life Rechargeable Electric Forklift Battery

18650-7S4P 25.2V 10.4Ah Li-ion Battery Pack

Shenzhen Factory Supply 10.4Ah Forklift Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

10.4Ah

Standard discharge 0.2C (A) after Standard charge

Minimum

9.9Ah

2

Nominal Voltage

25.2V

Mean Operation Voltage

3

Voltage at end of

About 19.6V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

29.2V



5

Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C



Constant Voltage 29.2V

0.02C cut-off

7

Standard discharge

Constant current 0.2C



end voltage 19.25V

8

Fast charge

Constant Current 0.5C



Constant Voltage 29.4V

0.02C cut-off

9

Fast discharge

Constant current 10A



end voltage 19.6V



10

Maximum Continuous Charge Current

15A/15A



11

Maximum Continuous Discharge Current

15A/15A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Capacity 80%: 0~40

60±25%R.H.

Recommended long-term storage temperature: 15~25℃

at the shipment state

14

Pack  Dimension

High: max165mm

Width: max88mm
Thickness: max76mm

Initial  Dimension
