Best Lithium Battery Manufacturer ODM Ultra Thin Battery for Smart Card BZ 024040 250mAh 3.7V Lipo Battery Cell

$1.80
In stock
SKU
BZ 024040

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China (Mainland)
        Brand Name: BZ
        Model Number: 024040
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 2*40*40mm
        Nominal Capacity: 250mAh
        Product name: 024040
        Warranty: 1 Year
        Weight: 6g
        Cycle life: 500 Times
        Capacity: 250mah
        Voltage: 3.7V
        Application: Ultra Thin Battery for Smart Card
        Certificate: CE/RoHS/UN38.3/MSDS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

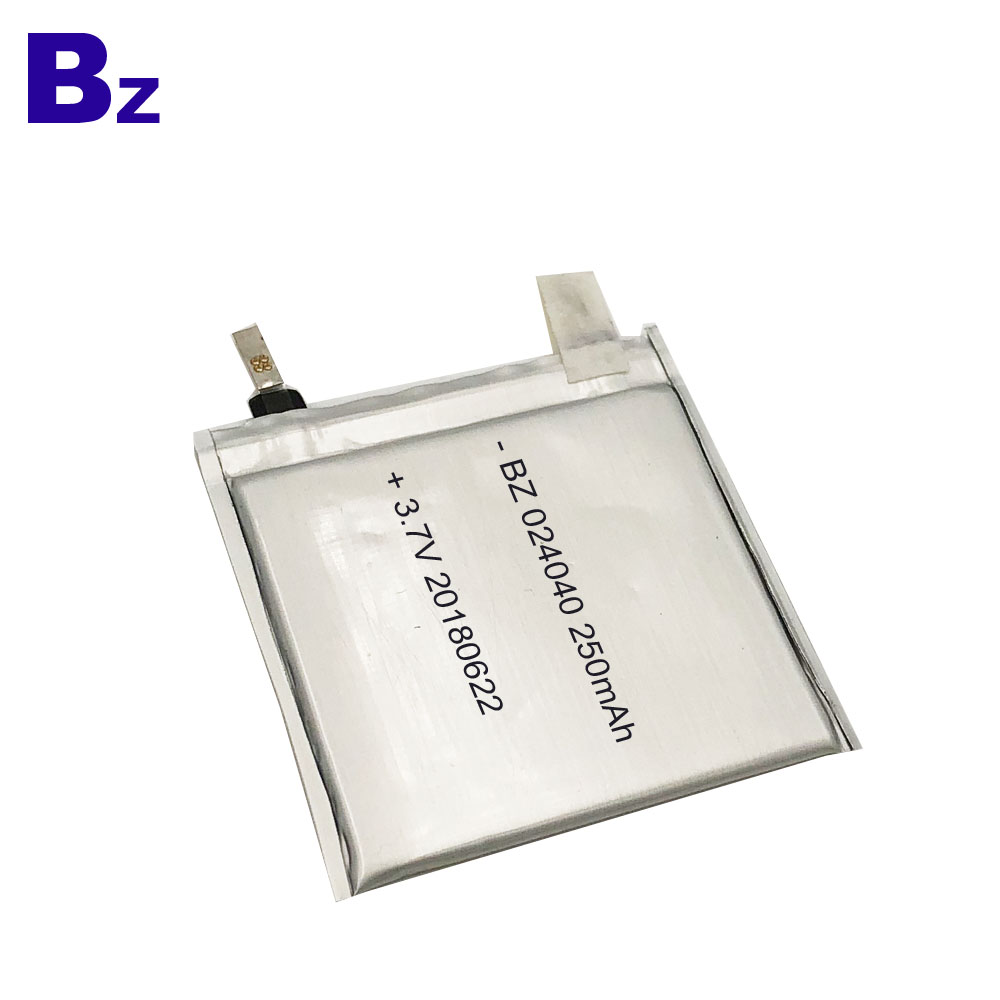

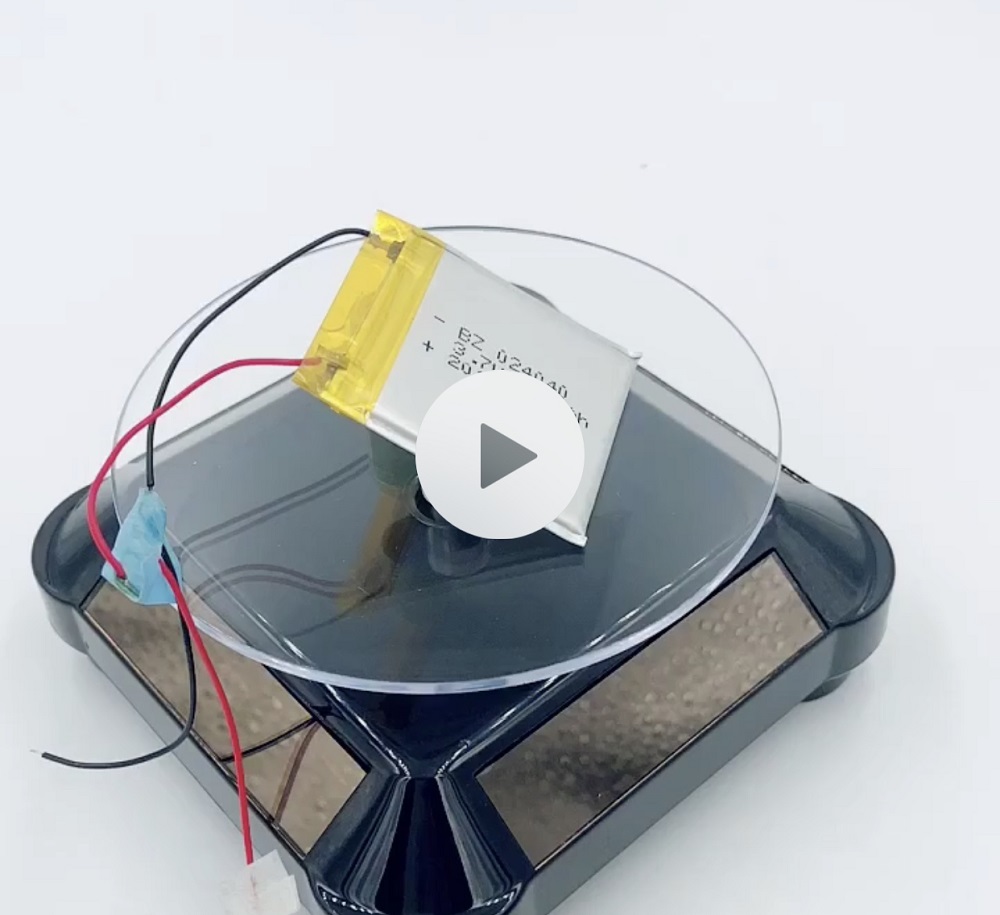

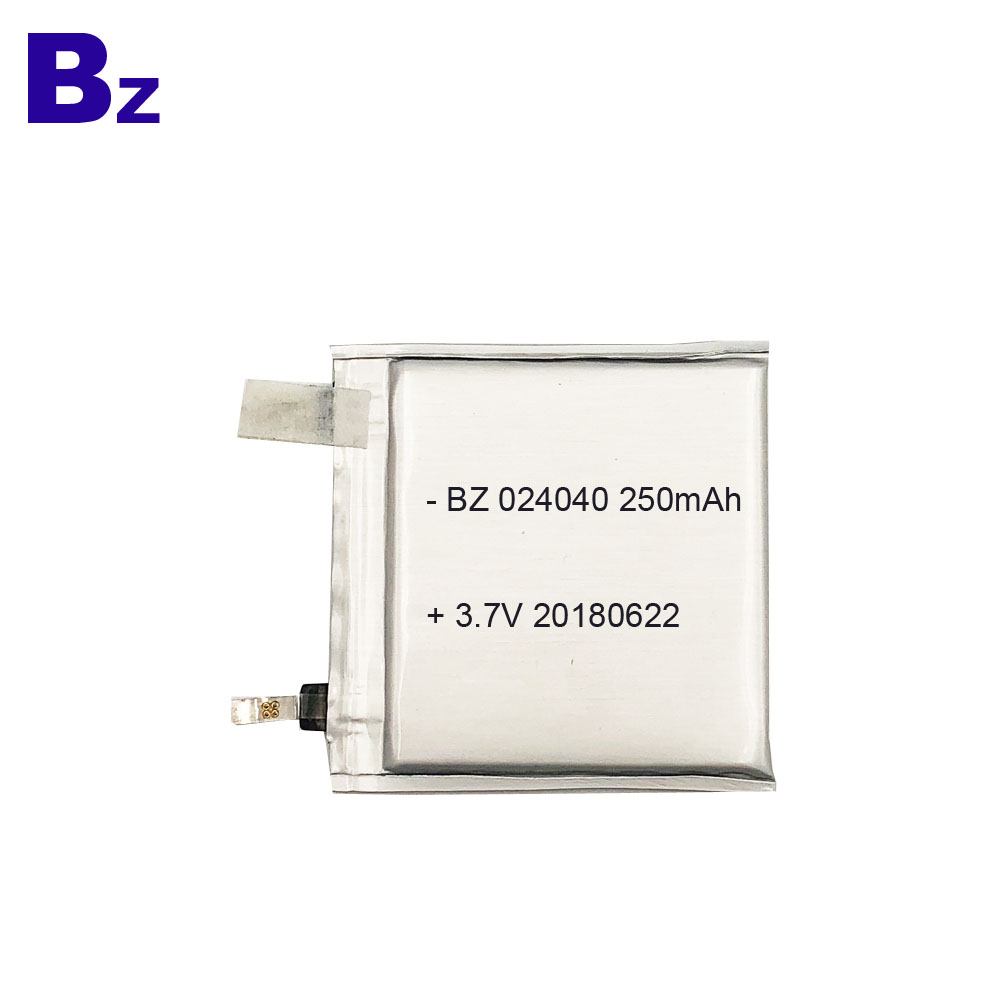

 Ultra Thin Battery for Smart Card BZ 024040 250mAh 3.7V Lipo Battery

024040 250mAh 3.7V Lipo Battery

Ultra Thin Battery for Smart Card

2mm thin battery

024040 250mAh 3.7V Lipo Battery Cell

250mAh 3.7V Lipo Battery Cell

Battery Cell for Smart Card

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

260mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

250mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤150mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max40mm

Width: max40mm
Thickness: max2mm

Initial  Dimension
