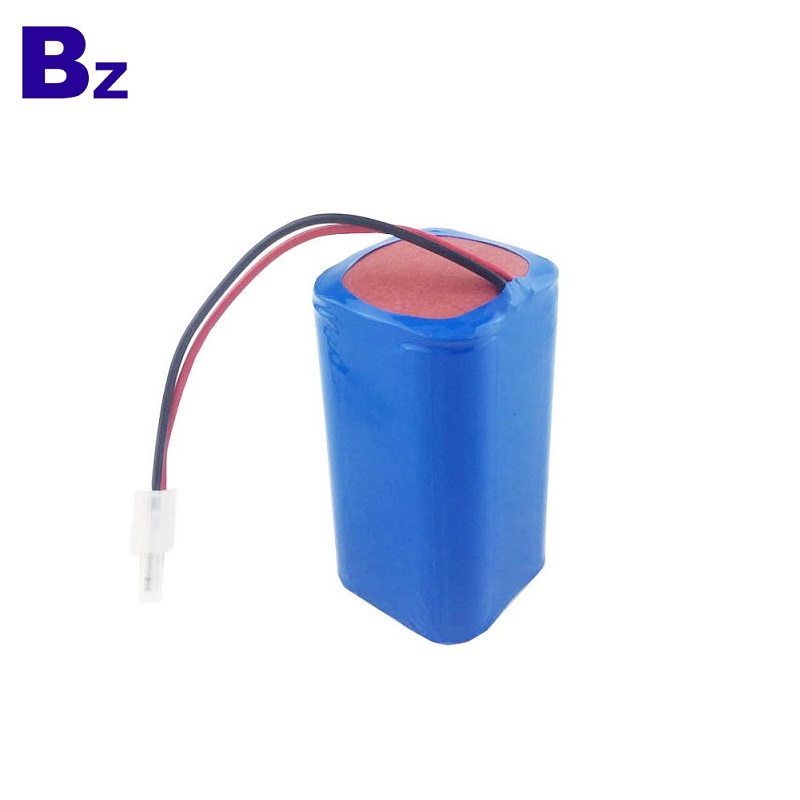

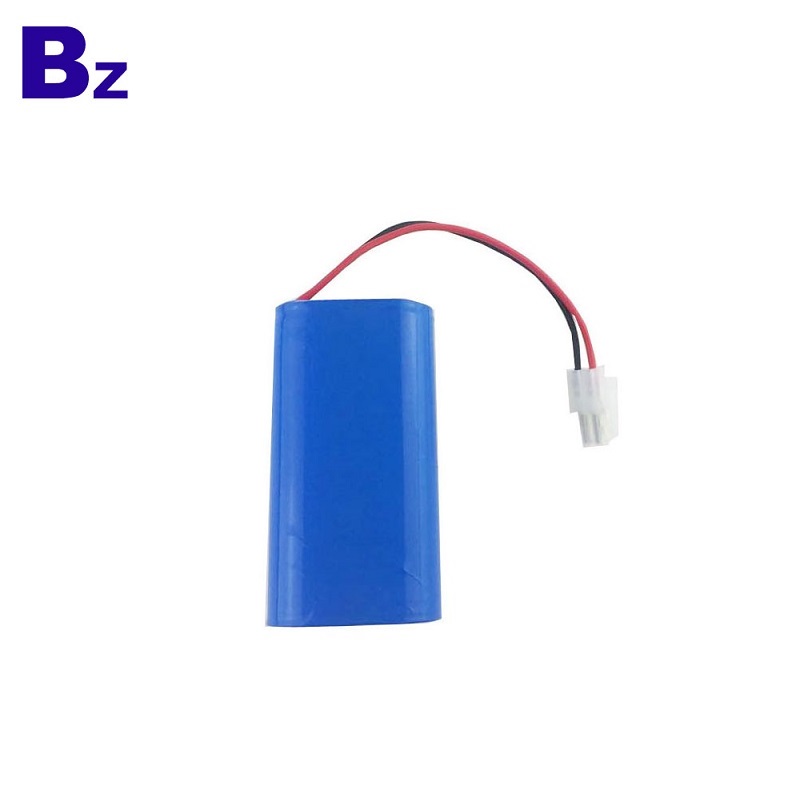

China Best Lithium-ion Cells Supplier OEM 18650 4S Batteries 2200mAh 14.8V Rechargeable Li-ion Battery

$7.00
In stock
SKU
18650 2200mAh 14.8V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
  •     Brand Name: BZ
  •     Model Number: 18650-4S
  •     Type: Li-Ion
  •     Nominal Voltage: 14.8V
  •     Size: 38*38*68mm
  •     Nominal Capacity: 2200mAh
  •     Product name: 18650-4S Li-ion Battery
  •     Warranty: 1 Year
  •     Weight: 178g
  •     Cycle life: 500 Times
  •     Capacity: 2200mah
  •     Voltage: 14.8V
  •     Application: Digital Products
  •     Certificate: CE/RoHS/UN38.3/MSDS
  •     Payment: Paypal.TT.Escrow.Western Union
  •     Max charge current: 0.2C~1C


li-ion battery


18650 4S Batteries 2200mAh 14.8V

2200mAh 14.8V Rechargeable Li-ion Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

2250mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

2200mAh

2

Nominal Voltage

14.8V

Mean Operation Voltage

3

Voltage at end of

10.8V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

16.8±0.03V



5

Internal Impedance

≤200mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 16.8V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 10.8V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 16.8V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage10.8V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max68mm

Width: max38mm
Thickness: max38mm

Initial  Dimension
