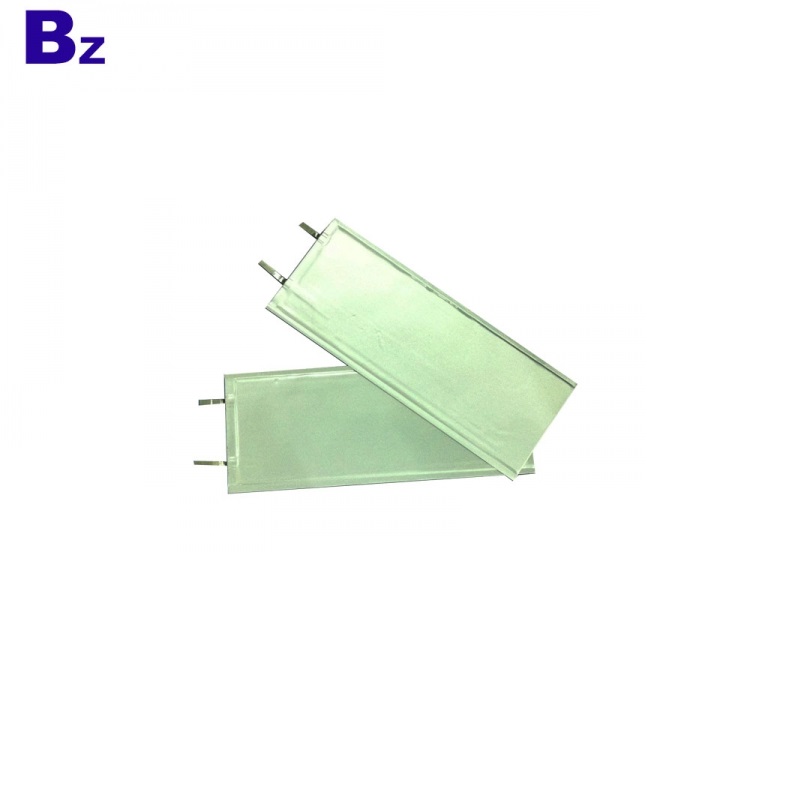

China Lithium Battery Manufacturer Custom-Made Smart Card Battery BZ 0144117 360mAh 3.7V Rechargeable Super thin Battery

$2.50
In stock
SKU
BZ 0144117

Price: US $1.8-2.5 / Piece
Min. Order: 5,000 Pieces
Please contact us for the order !

    Brand Name: BZ
    Model Number: 0144117
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 1*40*117mm
    Nominal Capacity: 360mAh
    Product name: 0144117 Li-ion battery
    Warranty: 1 Year
    Weight: 3g
    Cycle life: 500 Times
    Capacity: 360mAh
    Voltage: 3.7V
    Application: Wireless Device
    Certificate: CE/RoHS/UN38.3/MSDS/KC/UL/CB/IEC62133
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C



li-ion battery

BZ 0144117 360mAh 3.7V Super thin Battery

Smart Card Battery BZ 0144117

Custom-Made Super thin Battery 360mAh

Super-thin Battery - BZ 0144117 - 360mAh - 3.7V - Lithium Ion Battery - Rechargeable

 No.

Item

General Parameter

Remark

1

Rated Capacity

Typical370mAh     Minimum360mAh

Standard discharge0.2C C5A) after Standard charge
2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of Discharge

2.75V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.03V
5

Internal Impedance

350mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 6h

7

Standard discharge

Constant current 0.2 C5A

end voltage 3.0V


8

Fast charge



Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 2.5h



9

Fast discharge

Constant current 0.5C5A

end voltage 3.0V


10

Maximum Continuous Charge Current

1.0 C5A
11

Maximum Continuous Discharge Current

1.0C5A
12

Operation Temperature Range

Charge:0~45℃

Discharge:-20~60℃

60±25%R.H.

Bare Cell

13

Storage Temperature Range

Less than 1 year: -20~25℃

less than 3 months: -20~40℃

60±25%R.H.

at the shipment stat

14

Pack  Dimension

      High: max117mm          Width: max40mm
Thickness
: max 1mm

Initial  Dimension
