China Lithium Battery Manufacturer Wholesale Li-ion Battery for Sweeper Robot BZ 18650 5S 2500mAh 18.5V 5C Li-ion Battery

$8.80
In stock
SKU
BZ 18650 5S 2500mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 18650
    Type: Li-Ion
    Nominal Voltage: 18.5V
    Size: 18*68*91mm
    Nominal Capacity: 2500mAh
    Product name: 18650-5S Li-ion Battery
    Warranty: 1 Year
    Weight: 225g
    Cycle life: 500 Times
    Capacity: 2500mah
    Voltage: 18.5V
    Application: Battery for Sweeper Robot
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

li-ion battery

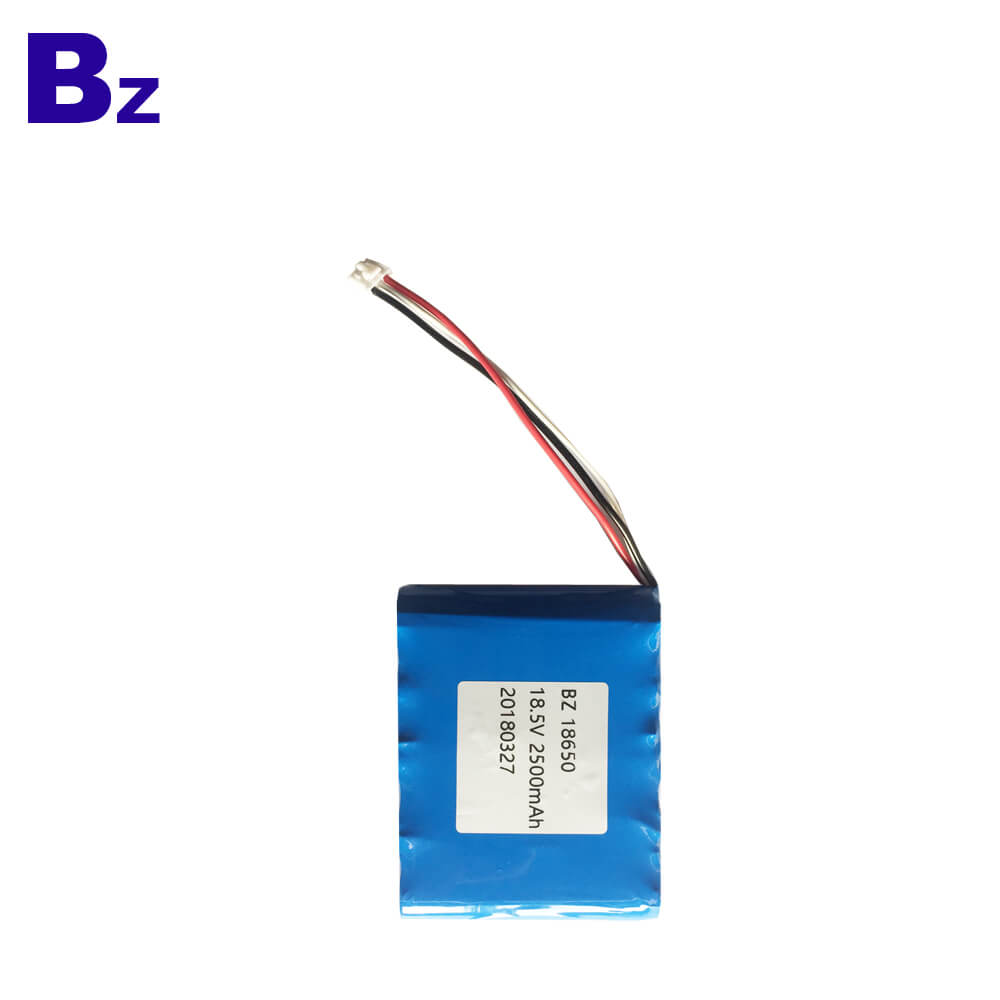

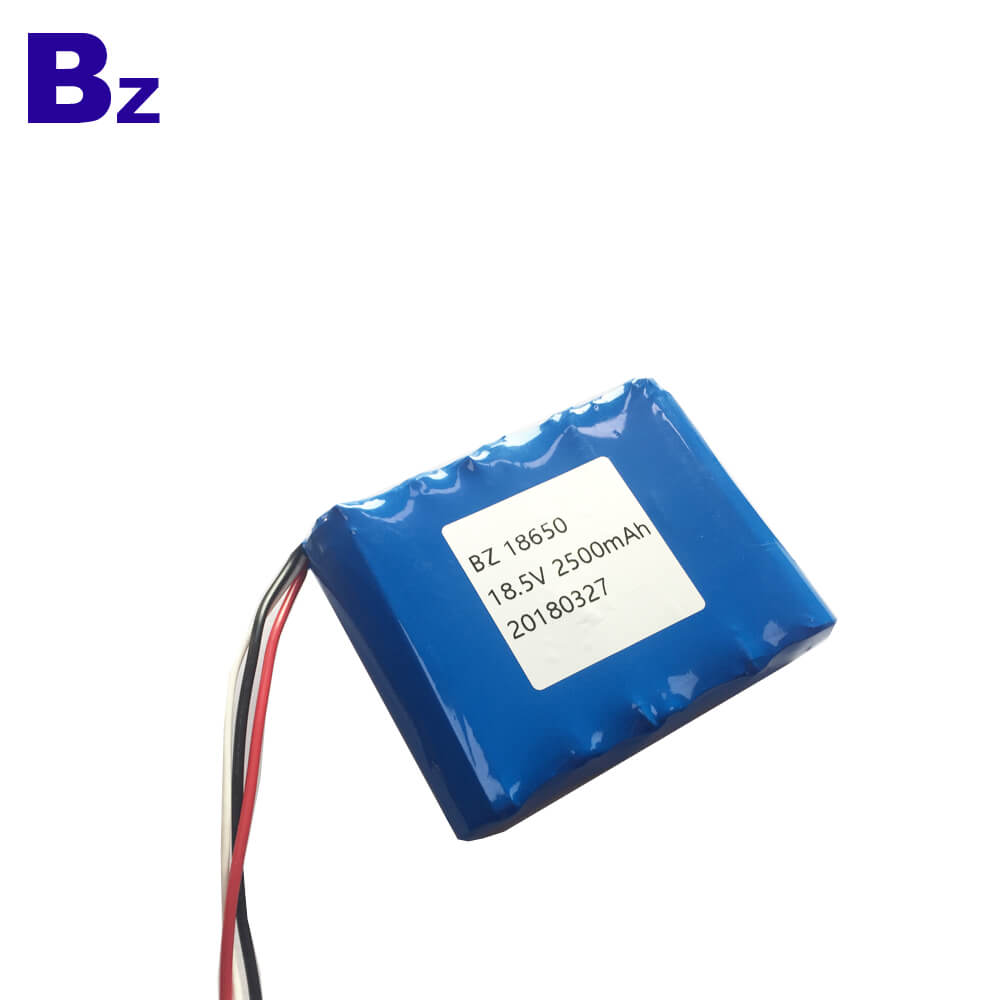

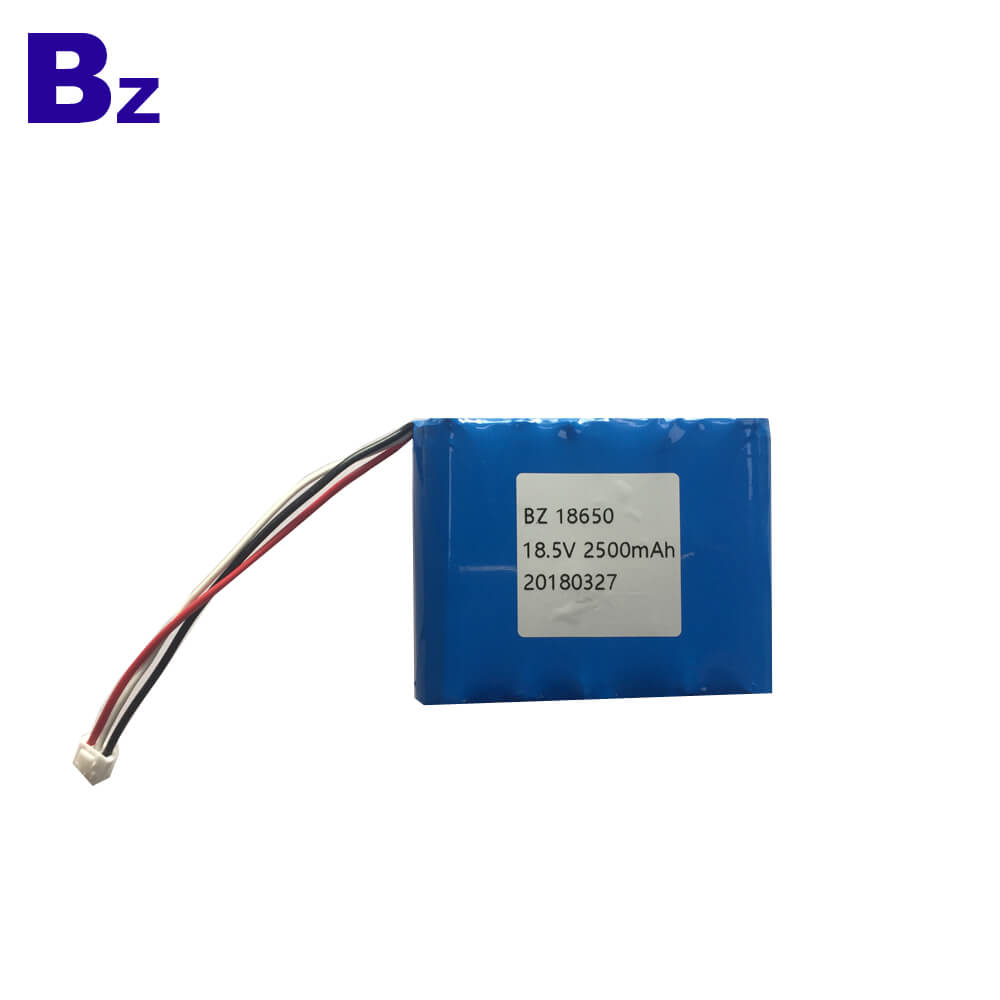

BZ 18650 5S 2500mAh 18.5V 5C Li-ion Battery

2500mAh 18.5V 5C Li-ion Battery for Sweeper Robot

Wholesale 18650 5S Li-ion Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

2550mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

2500mAh

2

Nominal Voltage

18.5V

Mean Operation Voltage

3

Voltage at end of

15.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

21±0.03V



5

Internal Impedance

≤150mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 5 C5A



end voltage 15V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 5C5A



end voltage 15V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

5C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max91mm

Width: max68mm
Thickness: max18mm

Initial  Dimension
