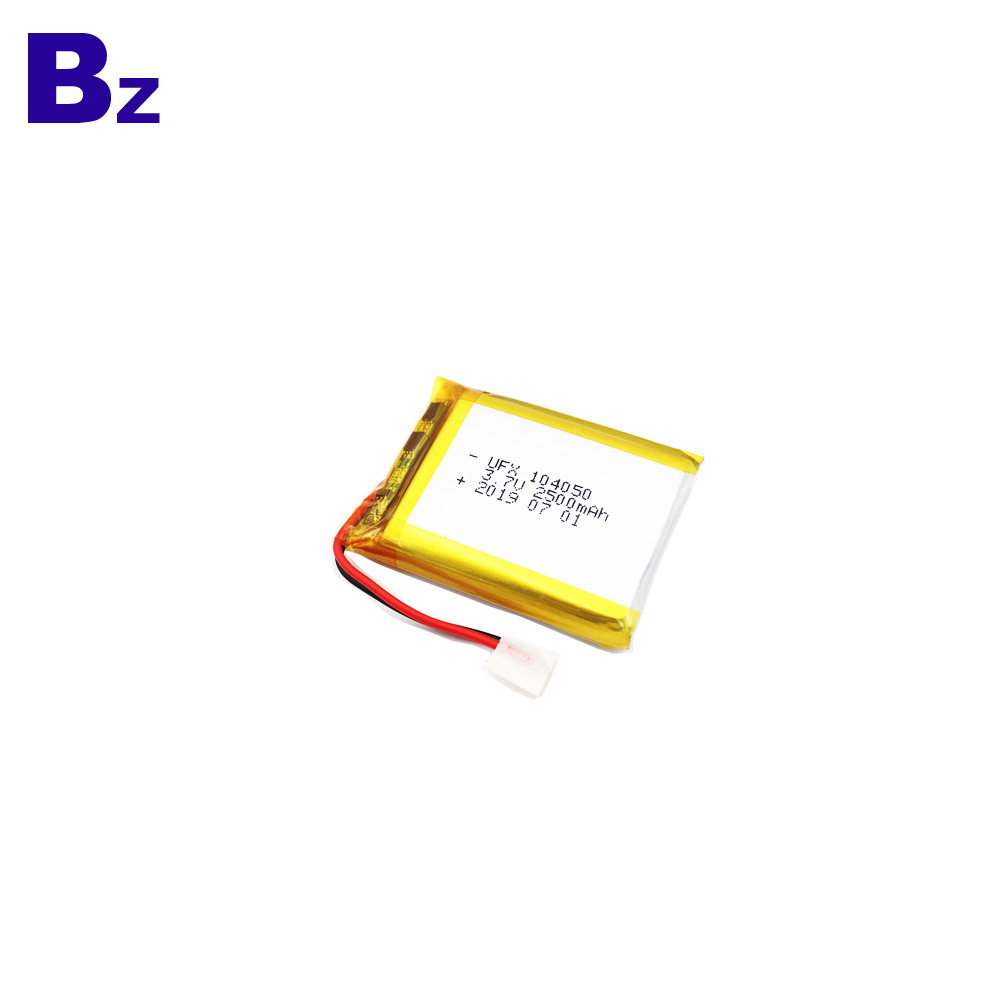

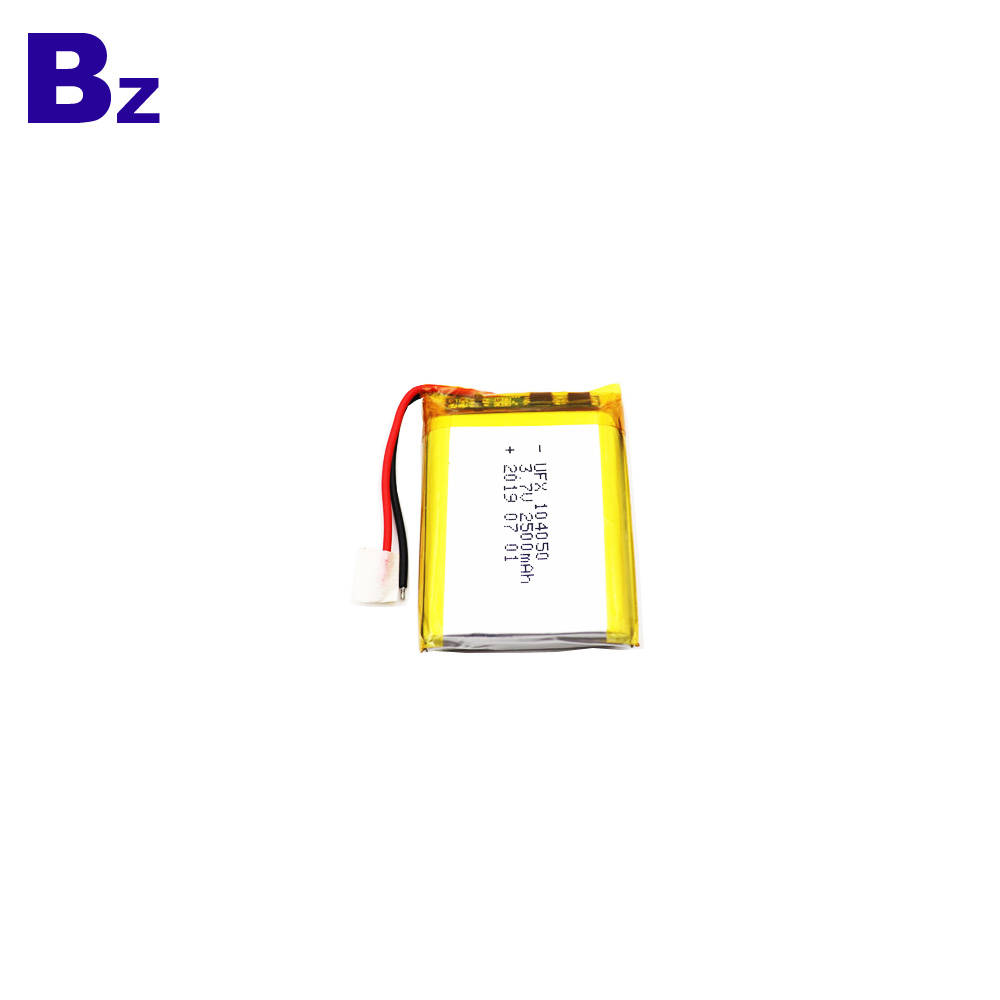

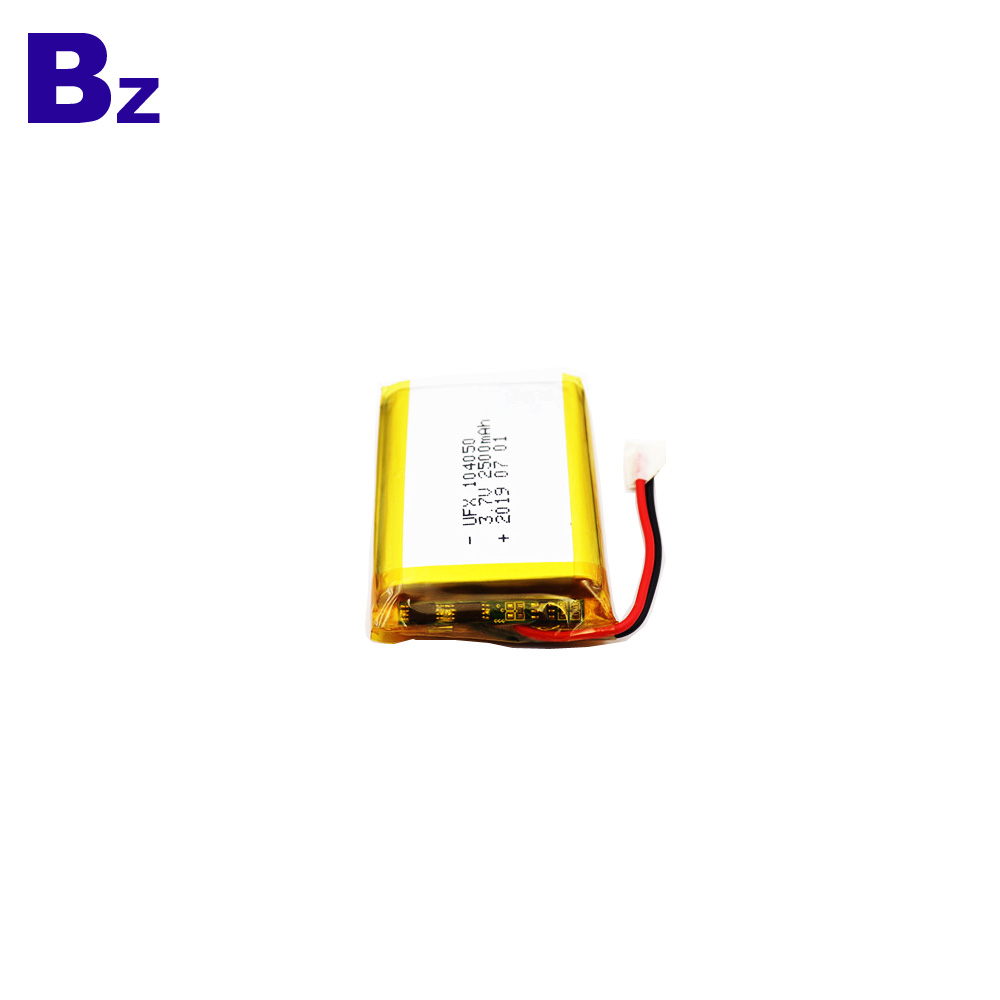

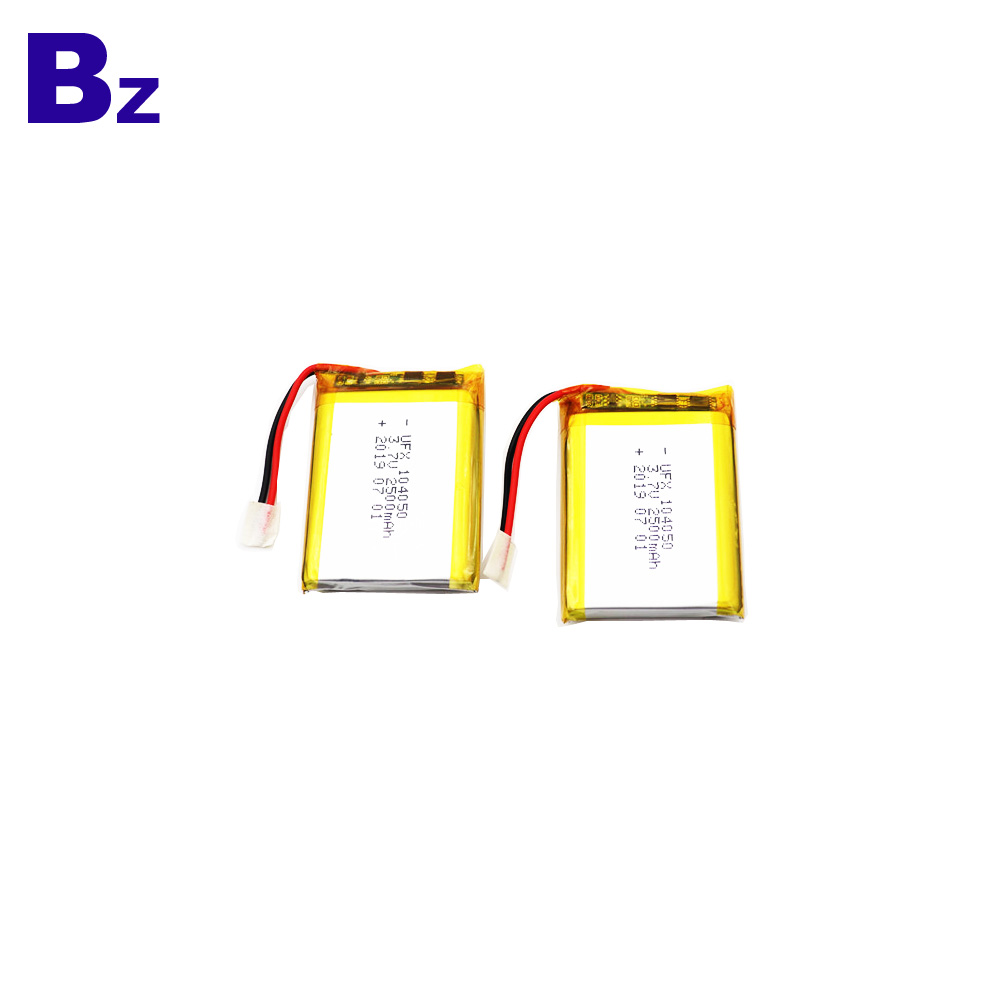

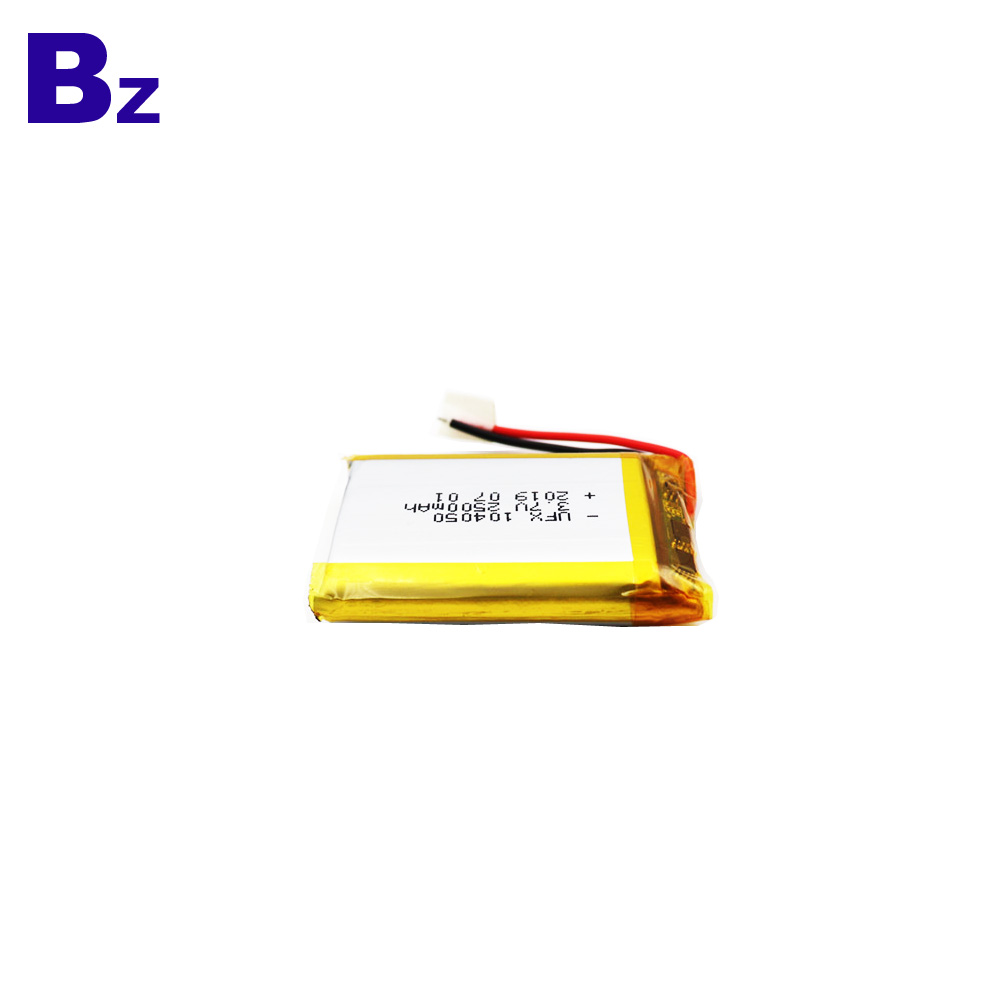

China Supplier Customized Battery For Radio Control Toy - UFX 104050 2500mAh 3.7V Li Polymer Battery With KC Certification

$2.60
In stock
SKU
UFX 104050

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 104050
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 10*40*52mm
        Nominal Capacity: 2500mAh
        Product name: UFX 104050 Li-ion Battery
        Warranty: 1 Year
        Weight: 47g
        Cycle life: 500 Times
        Application: Radio Control Toy
        Certificate: UN38.3/MSDM/CE/ROHS/KC
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

li-ion battery

2500mAh Battery For Radio Control Toy

 2500mAh Li Polymer Battery With KC Certification

104050 2500mAh 3.7V Li Polymer Battery

 3.7V Li Polymer Battery

 Li Polymer Battery With KC Certification

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

2580mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

2500mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max52mm

Width: max40mm
Thickness: max10mm

Initial  Dimension
