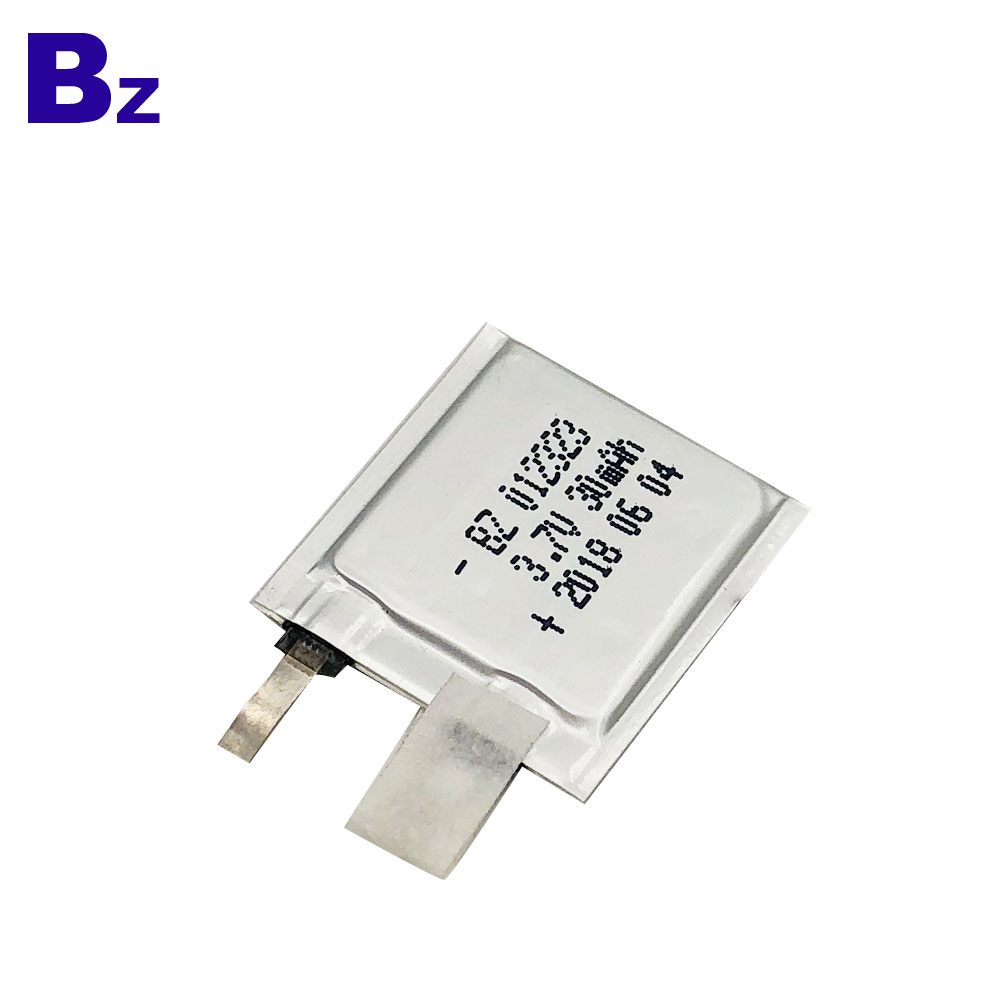

Chinese Best Lithium Battery Manufacturer ODM Super Thin Battery for Intelligent Card BZ 012323 30mAh 3.7V Lipo Battery

$1.80
In stock
SKU
BZ 012323

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China (Mainland)
        Brand Name: BZ
        Model Number: 012323
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 1*23*23mm
        Nominal Capacity: 30mAh
        Product name: BZ 012323 Ultra thin lipo battery
        Warranty: 1 Year
        Weight: 1g
        Cycle life: 500 Times
        Capacity: 30mah
        Voltage: 3.7V
        Application: Battery for Intelligent Card
        Certificate: CE/RoHS/UN38.3/MSDS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Super Thin Battery for Intelligent Card BZ 012323 30mAh 3.7V Lipo Battery

012323 30mAh 3.7V Lipo Battery



Super thin Battery for Intelligent Card

012323 30mAh 3.7V Lipo Battery





Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

32mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

30mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤450mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max23mm

Width: max23mm
Thickness: max1mm

Initial  Dimension
