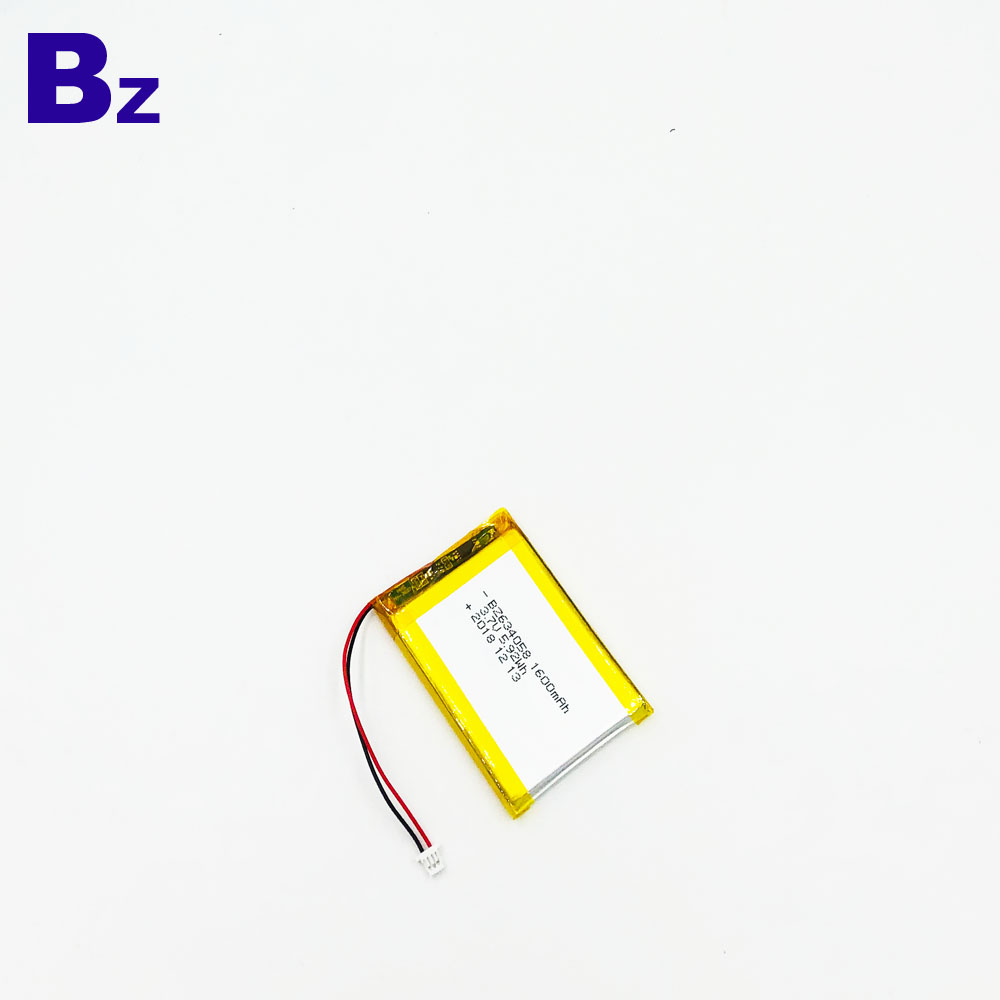

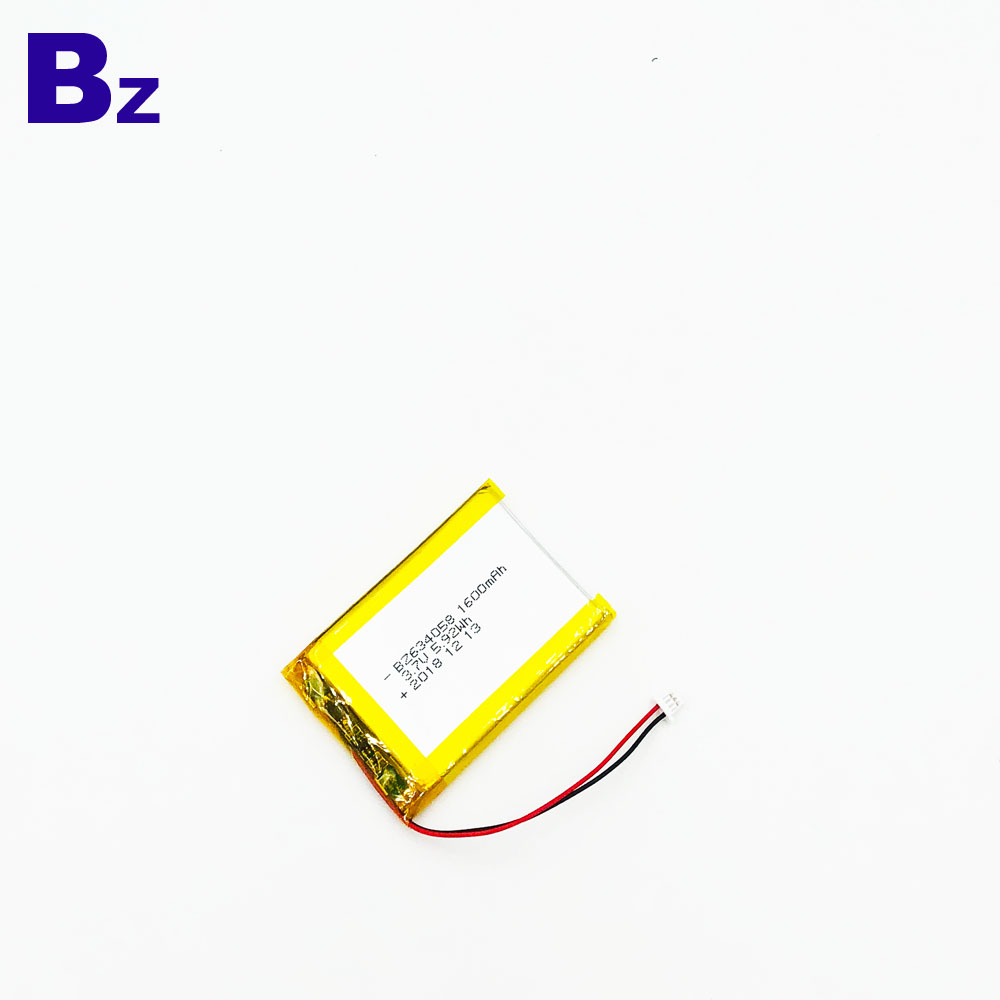

Chinese Lithium Cells Factory Customized Rechargeable Lithium Ion Polymer Battery For Gps BZ 634058 1600mAh 3.7V Lipo Battery

$2.30
In stock
SKU
BZ 634058

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: BZ
        Model Number: 634058
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size:6.3*40*60mm
        Nominal Capacity: 1600mAh
        Product name: BZ 634058 Li-ion Battery
        Warranty: 1 Year
        Weight: 37g
        Cycle life: 500 Times
        Application: GPS
        Certificate: CE/RoHS/UN38.3/MSDS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C



Lithium Ion Polymer Battery For Gps BZ 634058 1600mAh 3.7V Lipo Battery

 BZ 634058 1600mAh 3.7V Lipo Battery

Chinese Factory customized Rechargeable

Lithium Ion Polymer Battery For Gps

634058 1600mAh 3.7V Lipo Battery

1600mAh 3.7V Lipo Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1650mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1600mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤30mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max60mm

Width: max40mm
Thickness: max6.3mm

Initial  Dimension
