China Li-ion Cell Factory Professional Custom 18650 2S2P 7.4V 5200mAh Lithium-ion Battery Pack for Lighting Device

$8.20
In stock
SKU
18650 2S2P 7.4V 5200mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: BZ
        Model Number: 18650-2S2P
        Type: Li-ion
        Nominal Voltage: 7.4V
        Size: 19*37*140mm
        Nominal Capacity: 5200mAh
        Product name: BZ 18650-2S2P Li-ion Battery
        Warranty: 1 Year
        Weight: 195g
        Cycle life: 500 Times
        Application: Lighting Device
        Certificate: UN38.3/CE/MSDS/ROHS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

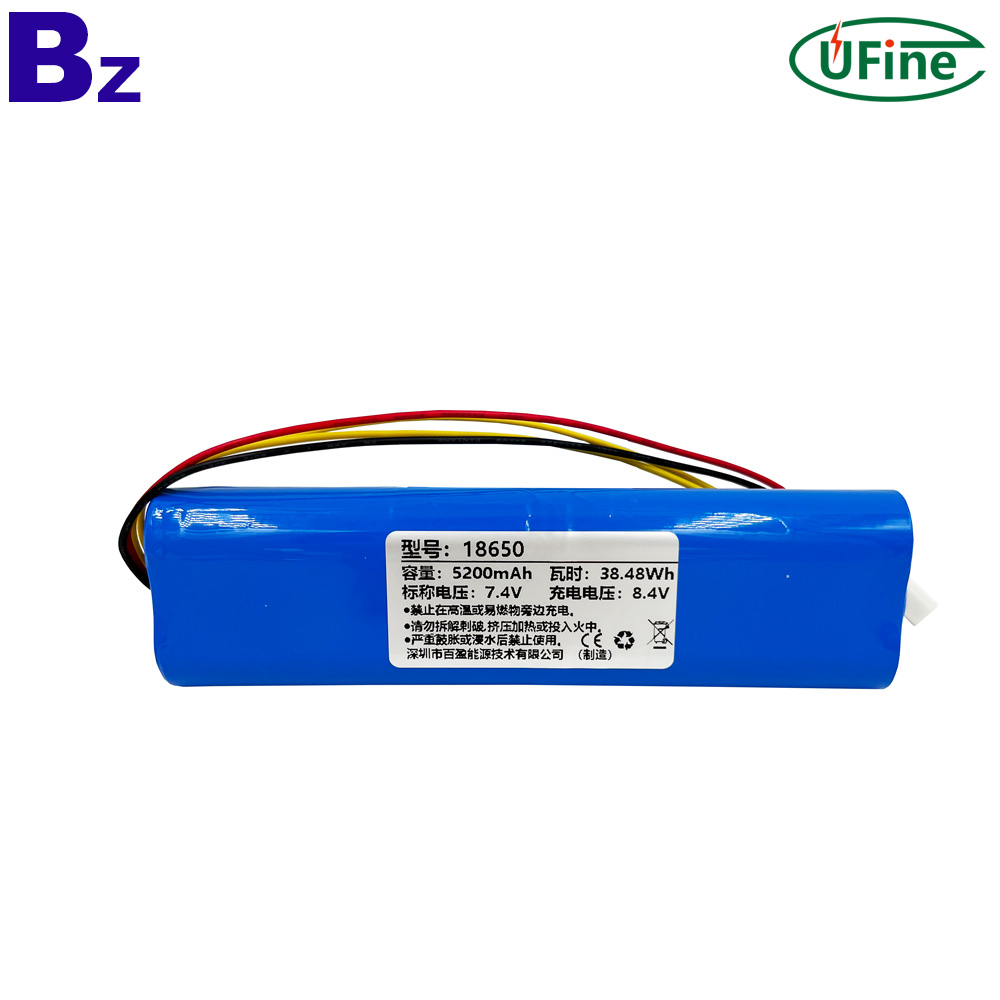

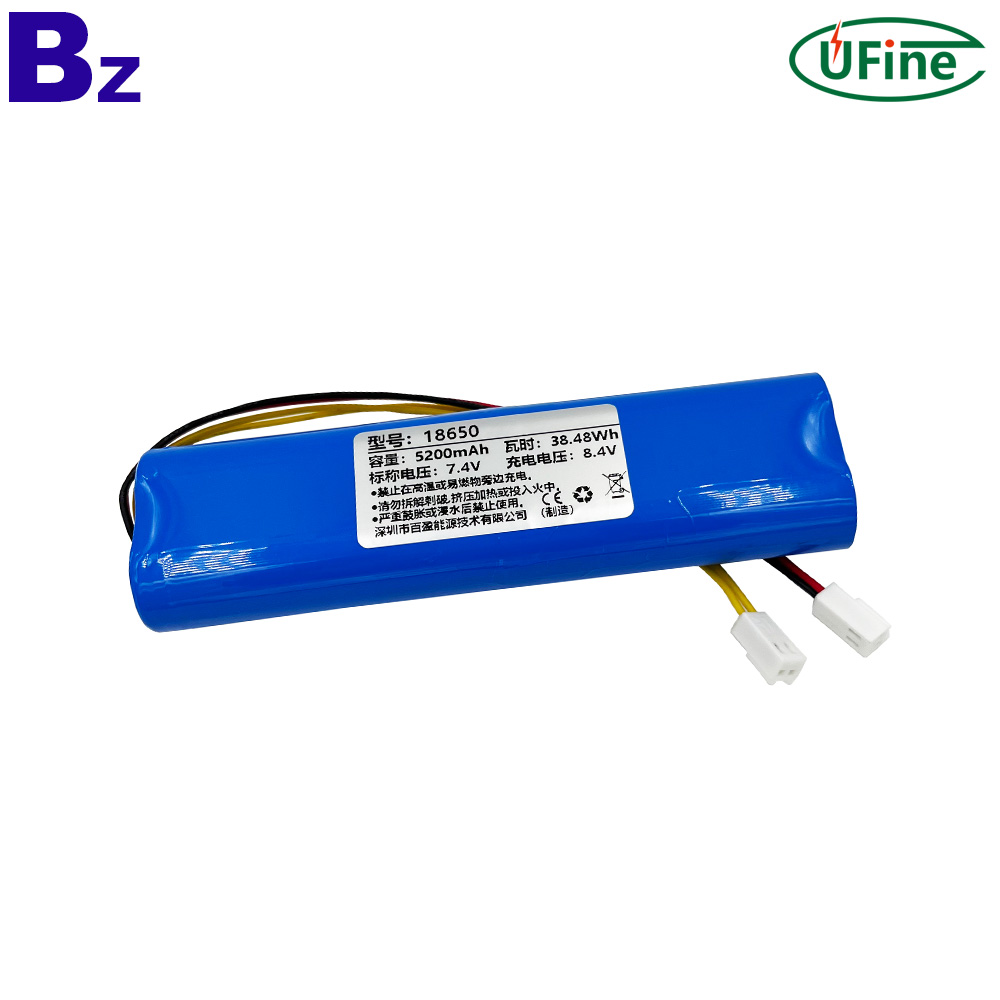

Professional Custom Battery Pack18650 2S2P 7.4V 5200mAh Battery

Battery Pack for Lighting Device

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

5230mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

5200mAh

2

Nominal Voltage

7.4V

Mean Operation Voltage

3

Voltage at end of

6.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

8.4±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 8.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 6.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 8.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 6.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max140mm

Width: max37mm
Thickness: max19mm

Initial  Dimension
